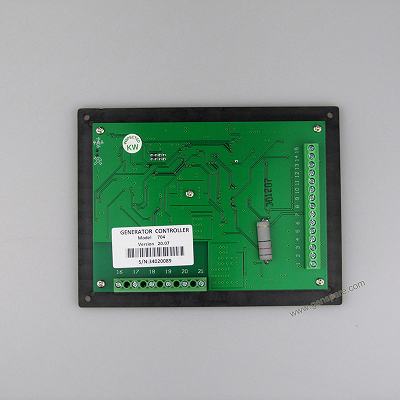

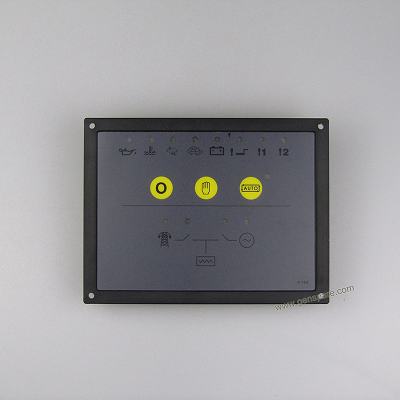

Deep Sea DSE 704 Generator AMF Controller DSE704

DSE704 Product Specification Download.pdf

AMF / AUTOMAINS FAILURE CONTROL MODULES

High quality replacement model for Deep Sea Generator Controller DSE704 with reasonable price!

The Brands here are for reference purpose only, our parts can exactly replace the original ones.

How to choose a suitable Generator Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

The DSE 704 Generator Controller is an Auto Mains Failure Control Module that offers an excellent range of engine monitoring and protection features. The module has been designed to monitor engine temperature, low oil pressure, fail to start, charge failure, over speed and under speed.

When the module detects a fault condition it automatically shuts down the engine. The module also

includes two user configurable auxiliary inputs.

DEEP SEA 704 Generator AMF Controller have been designed to automatically start the generator when the mains (utility) power fails.

As soon as mains (utility) power is restored the modules have been designed to transfer the load back to the mains (utility) provide. The modules then instruct the engine to begin the cool down procedure and stopping sequence (user configured).

FEATURES of AMF Generator Controller DSE704

• Automatic mains (utility) provide monitoring

• Automatic shutdown when fault conditions are detected

• Manual start

• Engine pre-heat

• Engine monitoring and protection features

• Protected Solid State (PSS) outputs

• Front panel mounting

• Front panel programming

• Tamper proof engine hours counter

• Remote start

• LED indicators

• Configurable timers

• Configurable outputs

• Single/three phase mains sensing

BENEFITS of Deep Sea Controller DSE704

• Transfers between mains (utility) and generator power

• On-site module configuration to match user requirements

• Hours counter provides accurate information for monitoring maintenance and warranty periods

• Multiple engine parameters are monitored simultaneously
