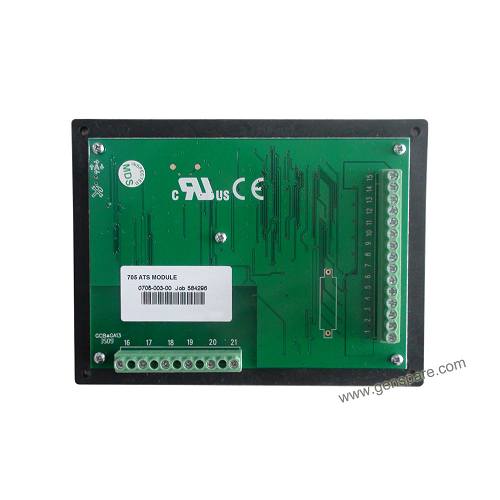

Deep Sea DSE 705 Generator ATS Controller DSE705

DSE705，DSE4130 Product Specification Download.pdf

AUTO TRANSFER SWITCH CONTROL MODULES

High quality replacement model for Generator Controller DSE705 with reasonable price!

The Brands here are for reference purpose only, our parts can exactly replace the original ones.

How to choose a suitable Generator Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

The deep sea 705 Generator Controller is Transfer Switch Control Module that have been designed to monitor the mains (utility) provide.

When the mains (utility) power fails, the module will send a start request to the generator control unit. When the generator is up and running the module transfers the load across.

When the mains (utility) returns, the module transfers the load back and removes the start command. The generator should then begin its shutdown procedure.

The DSE705 Deep Sea Controller can be configured to follow the users’ pre-set start and stop sequences.

KEY FEATURES of DSE 705 Generator ATS Controller

• Automatic mains (utility) provide monitoring

• Load changeover control

• Manual start

• Protected Solid State (PSS) outputs

• Front panel mounting

• Front panel programming

• LED indicators

• Configurable timers

• Single/three phase mains (utility) sensing

• Remote start input

KEY BENEFITS Deep Sea DSE705 Generator Controller

• Transfers between mains (utility) and generator power

• On-site module configuration to match user requirements
