DSE Deep Sea 720 AMF Generator Controller DSE720

DSE710,DSE720 Product Specification Download.pdf

AUTO START MODULES AMF GENERATOR CONTROLLER

High quality replacement model for DEEP SEA AMF Generator Controller DSE720 with reasonable price!

The Brands here are for reference purpose only, our parts can exactly replace the original ones.

How to choose a suitable Generator Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

The deep sea 720 Generator Controller is an Automatic Start Control Module that offers an advanced range of engine monitoring and protection features.

The module has been designed to monitor generator frequency, generator volts, generator current,

engine oil pressure, engine coolant temperature, engine running hours and battery volts.

The module also displays the engine speed. When the module detects a fault condition it automatically shuts down the engine and indicates the exact fault on the modules LCD display or

relevant LED indicator.

The DSE720 Deep Sea Controller can be configured using the front panel or via the DSE810 interface and a PC. The module can also be controlled from a PC that is located up to 100 meters away.

FEATURES of Generator AMF Controller DSE 720

• PC configurable

• Digital and analogue inputs

• Digital outputs

• Automatic shutdown or warning when fault conditions are detected

• Manual start

• Engine pre-heat

• Engine monitoring and protection features

• Protected Solid State (PSS) outputs

• Front panel mounting

• Front panel programming

• Tamper proof engine hours counter

• Remote start

• LED indicators

• Configurable timers

• Configurable outputs

• Configurable inputs

• Back-lit character/icon LCD display

BENEFITS DSE 720 DEEP SEA AMF Controller

• On-site module configuration and remote configuration (Max 100 Meters) using PC software

• User-friendly set-up and button layout

• Multiple engine parameters are monitored simultaneously

• License free PC software

OPERATION

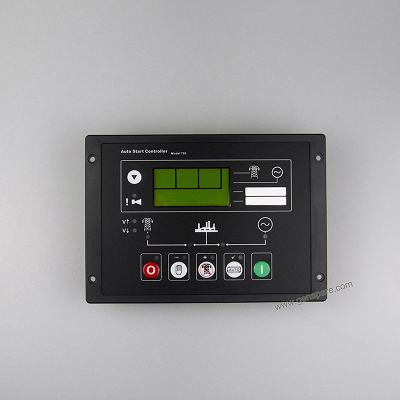

The DSE 720 is operated using the front STOP/RESET, MANUAL, AUTO, TEST and START push

buttons.

An additional push button next to the LCD display is used to scroll through the modules’ metering

displays.

CONFIGURATION

The Deep Sea DSE720 Controller can be configured using the front panel or remotely using the DSE810 interface and a PC.

As well as configuration the DSE810 interface has the ability to provide real time diagnostic facilities.
