DSE Deep Sea DSE810 PC Software Interface P810

Compatible Controllers: DSE710, DSE720, DSE5110, DSE5120, DSE5210, DSE5220

The Brands here are for reference purpose only, our parts can exactly replace the original ones.

The DSE DSE810 PC Software Interface P810 is designed for use with the DSE5xx, DSE5xxx, DSE4200 and DSE710/720 range of modules. It is intended to be used in conjunction with the Deep Sea 810 For MS-Windows™ configuration software. The interface enables the user to access the configuration stored within the module to allow changes to be made to the various settings.

How to choose a suitable Generator Controller?

1. Cheap Generator Controller : DSE501K, DSE701, DSE702, DSE704, DSE3110, DSE4520, DSE4620 (for low cost small power generators)

2. More Functions Genset Controller: DSE5110, DSE5220, DSE6020, DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (for high power generator)

3. More Languages Generator Controller: DSE6120, DSE7210, DSE7220, DSE7310, DSE7320, MRS-10, MRS-16, AMF-20, AMF-25 (Avaliable Languages: English, Spanish, Portuguese, French, German, Russian, Chinese and etc.)

4. AMF Controller Modules: DSE704, DSE720, DSE5220, DSE6120, DSE7220, DSE7320; AMF-20, AMF-25 (Auto Mains Failure Generator Control Modules)

5. Synchronising and Load Share Controller: DSE8610, DSE8620, DSE8660, ICNT-MINT, ICNT-MCNT, ICNT-SPTM

6. Canbus ECU Communications Generator Control Panel: MRS-16, AMF-25, DSE7210, DSE7220, DSE7310, DSE7320, DSE3110 ECU, DSE4520, DSE7320 MKII

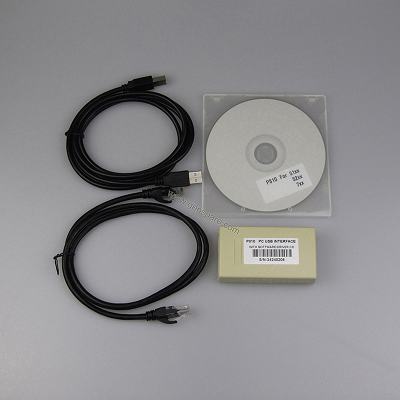

The Deep Sea DSE810 PC Software Interface P810 comprises of:

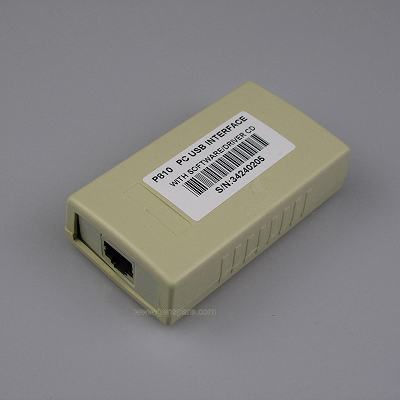

► Interface module

► 25 way to 9 way RS232 adapter cable

► Interconnecting FCC 68- 8way cable which connects to the appropriate connector on the module.

► Software diskettes (or a CD) containing the P810 for Windows PC software and various module

configuration files to aid rapid module configuration.

Also included on the disk is a MS Word™ template, this can be used to make labels for the configurable LED’s on the module to identify their function. A slot is provided behind the clear window in the label for this, accessed by removing the front bezel.

The software will offer the user the following options:

► LOAD previous configurations from disk.

► SAVE new configurations to disk.

► READ the existing configuration from the module.

► WRITE a new configuration to the module.

► EDIT the configuration currently loaded in the PC.

► PRINT the configuration currently loaded in the PC.

► View the ‘SCADA’ display from the module.

► SET- UP the software such as COM port selection.

► QUIT back to Ms-Windows™.

► Set- up the Optional Remote

Telemetry & Control functions

The main use of the DSE PC Interface P810 is to EDIT the modules’ configuration to allow for use with a particular application. Values such as analogue trip and alarm levels, timers, input function selection, relay output functions etc. can all be adjusted on the PC screen and then ‘WRITTEN’ to the module.

For further details on using the software, please refer to the DSE Interface P810 for Windows Software manual.

SPECIFICATION of Deep Sea DSE810 PC Interface

DC PROVIDE :

The 810 interface is powered from the module to which it is connected so no external power provide is required to the interface. The module however will need to be connected to a suitable DC provide.

DIMENSIONS of Deep Sea Interface P810:

57mmx100mmx22mm

OPERATING TEMPERATURE RANGE:

- 15 to +55℃
