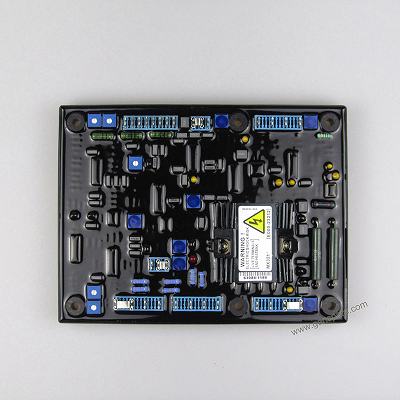

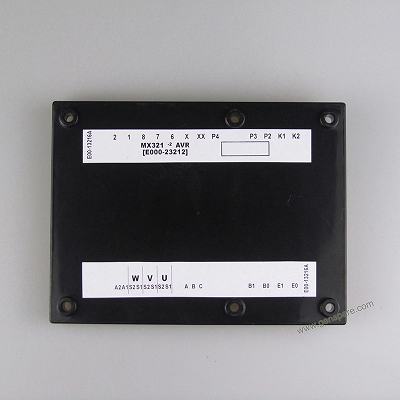

Stamford AVR MX321
Stamford Alternator Voltage Regulator
Warranty: 1 Year
Gross Weight: 0.8kgs
Stock Status: In stock
Part No. : MX321
Replaced Brand: Stamford
Function: Stamford Alternator AVR
Usage: Stamford Alternator Voltage Regulator
Compatible with: Stamford AVR MX321
Product Name: Stamford MX321 AVR
Stamford Alternator Voltage Regulator AVR MX321
MX321 Product Specification Download.pdf
High quality replacement model for Stamford Alternator AVR MX321 with reasonable price!
Replacement Models:AS440, AS480, SX440, SX460, MX341, MX321, MX450
Original Modules: AS440, AS480, SX460, MX341, MX321, MX450, MX342, MX330, EBC-1, RSK1001, RSK2001, RSK5001, RSK6001
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.
SAME AVR AS:
Stamford AVR E000-23212/1P VOLTAGE REGULATOR
Stamford AVR E000-23210 VOLTAGE REGULATOR
Cummins Onan AVR 305-0823 VOLTAGE REGULATOR
FG Wilson AVR 594-010 VOLTAGE REGULATOR
FG Wilson AVR 594-158 VOLTAGE REGULATOR
Olympian AVR 594-010 VOLTAGE REGULATOR
Olympian AVR 594-158 VOLTAGE REGULATOR
Mitsubishi AVR 44R4421811 VOLTAGE REGULATOR
General description
Stamford MX321 AVR is a three phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brush-less generator. Excitation power is derived from a three-phase permanent magnet generator (PMG), to isolate the VOLTAGE REGULATOR control circuits from the effects of nonlinear loads and to reduce radio frequency interference on the generator terminals. Sustained generator short circuit current is another feature of the PMG system.
The Stamford MX321 Alternator VOLTAGE REGULATOR senses the voltage in the main generator winding and controls the excitation to maintain the generator output voltage within the specified limits, compensating for load, speed, temperature and power factor of the generator.
Three phase RMS sensing is employed for superior voltage regulation.
Adjustable Soft start circuitry is included to provide a smooth controlled build up of generator output voltage.
A frequency measuring circuit continually monitors the shaft speed of the generator and provides under-speed protection of the excitation system by reducing the generator output voltage proportionally with speed below a pre-settable threshold. A further enhancement of this feature is an adjustable volts per Hertz slope and voltage recotime, to improve the response of turbo charged engines.
Current limiting may be included to allow control over the amount of sustained short circuit current.
Maximum excitation is limited to a safe period by internal shutdown of the MX321 Stamford Alternator AVR output device. This condition remains latched until the generator has stopped.
The VOLTAGE REGULATOR includes an over-voltage protection feature with internal shutdown of the VOLTAGE REGULATOR Stamford MX321 AVR output device, plus the ability to trip an optional excitation circuit breaker if required.
Provision is made for the connection of a remote voltage trimmer, allowing the user fine control of the generator's output.
An analogue input is provided allowing connection to a Newage Power Factor controller or other external device with compatible output.
The Stamford VOLTAGE REGULATOR MX321 has the facility for droop CT connection, to allow parallel running with other similarly equipped generators.
Technical specification
SENSING INPUT
Voltage 190-264V ac max, 2 or 3 phase
Frequency 50-60 Hz nominal
POWER INPUT (PMG)
Voltage 170-220V ac max, 3 phase, 3 wire
Current 3A/phase
Frequency 100-120 Hz nominal
OUTPUT
Voltage max 120V dc
Current continuous 3.7 A (see note 1)
Intermittent 6A for 10 secs.
Resistance 15 ohms minimum
REGULATION
+/- 0.5% RMS with 4% engine governing (see note 2)
THERMAL DRIFT
0.02% per deg. C change in VOLTAGE REGULATOR ambient (note 3)
SOFT START RAMP TIME
0.4 - 4 seconds
TYPICAL SYSTEM RESPONSE
VOLTAGE REGULATOR response 10 ms
Filed current to 90% 80 ms
Machine Volts to 97% 300 ms
EXTERNAL VOLTAGE ADJUSTMENT
+/-10% with 5 k ohm 1 watt trimmer (see note 4)
UNDER FREQUENCY PROTECTION
Set point 95% Hz (see note 5)
Slope 100-300% down to 30 Hz
Max. Dwell 20% volts/S recovery
UNIT POWER DISSIPATION
18 watts maximum
ANALOGUE INPUT
Maximum input +/- 5 Vdc (see note 6)
Sensitivity 1v for 5% Generator Volts (adjustable)
Input resistance 1k ohm
QUADRATURE DROOP INPUT
10 ohms burden
Max. sensitivity: 0.22 A for 5% droop 0PF
Max. input: 0.33 A
CURRENT LIMIT INPUT
10 ohms burden
Sensitivity range: 0.5 – 1A
OVER VOLTAGE DETECTOR INPUT
Set point: 300v. Time delay: 1 Sec (fixed)
CB trip coil volts: 10-30 vdc
CB trip coil resistance: 20-60 ohms
OVER EXCITATION PROTECTION
Set point 75 V dc
Time delay 8-15 seconds (fixed)
ENVIRONMENTAL
Vibration 20-100 Hz 50mm/sec
100Hz – 2kHz 3.3g
Operating temperature -40 to +700C
Relative Humidity 0-700C 95% (see note 7)
Storage temperature -55 to +800C
