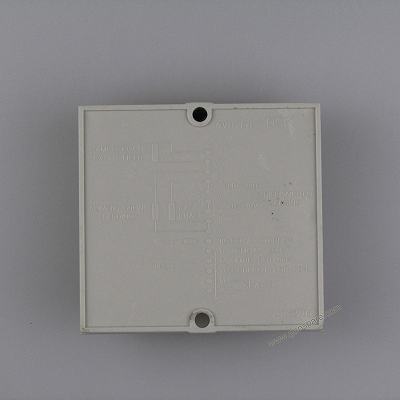

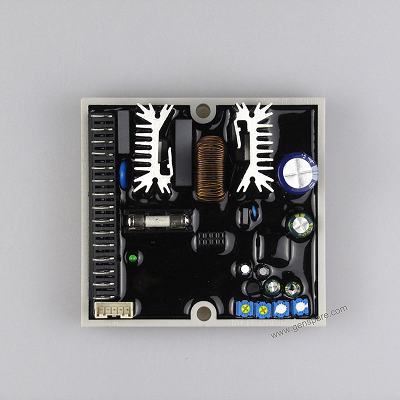

Mecc Alte Generator Auto Voltage Regulator DSR AVR
DSR AVR
AVR DSR
introduction
Warranty: 1 Year
Gross Weight: 0.4kg
Stock Status: In stock
Part No. : DSR
Replaced Brand: Mecc Alte
Function: Mecc Alte Generator AVR
Usage: Mecc Alte Auto Voltage Regulator
Compatible with: Mecc Alte AVR DSR
Product Name: Mecc Alte DSR AVR
Mecc Alte Generator Auto Voltage Regulator DSR AVR
DSR Product Specification Download.pdf
We have Mecc Alte DSR AVR in regular stock!
The brands / Part No. mentioned here are for reference purpose only, we provide Replacement model / not original Mecc Alte product!
The Mecc Alte AVR DSR is an advanced AVR replacing the traditional automatic voltage regulator. This voltage regulator is fully digital controlled and is fitted as standard across all our ECO and ECP models.
Connections on the Mecc Alte DSR are through 15 fast on / fast off connectors which speed up the connection process. This is especially useful if reconnecting a 12 wire machine to any specific voltage. This regulator is cross-compatible with all ECO and ECP machines and can be used as standard with the MAUX system and the PMG ma systems, so there’s never any need to change regulators. Its single phase sensing comes as standard.
By means of the external communication board (DXR or DL1), computer connection (RS232 or USB) or PLC connection (RS485 via MODBUS) is available. This allows changes to the AVR settings, to monitor in real-time performances (Voltage, Frequency or DSR status), or to download the alarm report (Communication software is available from Mecc Alte).
Characteristics
Variable voltage supply | 40 ÷ 270 Vac |
Frequency range | 15 Hz ÷ 72 Hz |
Precision of voltage regulation | ± 1% |
Maximum continuous output current | 5 Adc |
Environmental temperature | -25°C ÷ +70°C |
Regulation | True RMS or average measurement (70÷280 Vac) |
Transient power drops and overvoltage | within ± 15% |
Voltage recovery time | within ± 3% of the value set, in less than 300 msec |
Transient overvoltage during start up | less than 5% of nominal voltage |
Sensing | Single phase |
Parameters (can be programmed via software) | VOLT, STAB, AMP and Hz can be set with trimmers (default) |
50/60Hz through a “jumper” (default) |
Features
Analogical remote control of output voltage is possible through external voltage (0÷2,5Vdc) or with a 10 Kohm linear potentiometer |
Underspeed protection with adjustable threshold and slope |
Overvoltage and undervoltage alarms |
Excitation overcurrent protection with delayed intervention |
Management of temporary short circuits (start up of asynchronous motors) |
Open collector output (not insulated) signalling intervention of protective devices (insulation on optional DI1 module) with programmable activation with respect to the individual alarms and the possibility to delay intervention |
Abnormal operation conditions storage (type of alarm, number of events, duration of the last event, total time) |
Memorization of the regulator operation time (starting from revision 11 of the Firmware) |
USB communication interface (with an optional USB2DxR module) |
