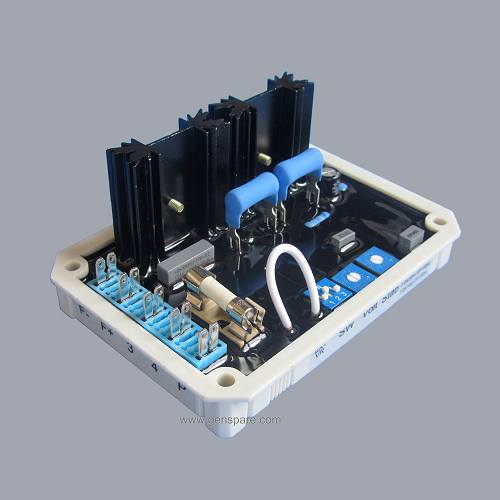

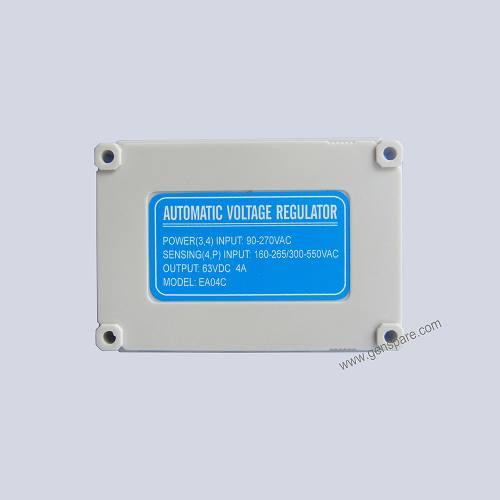

Kutai Basler Voltage Regulator AVR EA04C VR63-4C

EA04C AVR

VR63-4C AVR



introduction

Warranty: 1 Year

Gross Weight: 0.4kg

Stock Status: In stock

Part No. : EA04C VR63-4C

Replaced Brand: Kutai, Basler

Function: Kutai AVR EA04C

Usage: Kutai EA04C AVR

Compatible with: Basler AVR VR63-4C

Product Name: Basler VR63-4C AVR

Kutai Basler Voltage Regulator AVR EA04C VR63-4C

Self Excited Automatic Voltage Regulator 63 Vdc 4 Amp



EA04C Product Specification Download.pdf


We have Kutai EA04C AVR in our regular stock!

Kutai AVR EA04C is compatible with Basler AVR VR63-4C

The Brands/ Part No. here are for reference purpose only, our parts can exactly replace the original ones.



INTRODUCTION of Kutai Voltage Regulator EA04C

Self Excited Automatic Voltage Regulator 63 Vdc 4 Amp
Sensing Input 160-265 Vac / 300-550 Vac 50 / 60 Hz
Compatible with Basler* VR63-4C regulator



Features for Basler VR63-4C AVR

Ø  Voltage regulation < +/- 1%

Ø  Sensing input 160-265 Vac / 300-550 Vac 50Hz / 60Hz

Ø  For use in 50Hz / 60Hz brushless generator

Ø  Under frequency & over excitation protection

Ø  EMI suppression

Ø  Built-in high breaking capacity fuse



Specifications:


Sensing Input

Voltage : 160-265 Vac / 300-550 Vac single   phase

Frequency : 50Hz / 60Hz selectable

Power Input

90-240 Vac single phase

Output

Voltage : Max. 63 Vdc @ 240 Vac input

Current : Continuous 4A   Intermittent   7A for 60 seconds

Resistance : Min. 15 ohms   Max. 100   ohms

Voltage Regulation

< +/- 1% (with 4% engine governing)

Build Up Voltage

Residual voltage at AVR terminal > 5Vac

Voltage Thermal Drift

0.05% per °C change in AVR ambient

EMI Suppression

Internal electromagnetic interference   filtering

Unit Power Dissipation

Max. 8 watts

External Volts Adjustment

+/- 15% with 1KΩ 1 watt trimmer

Over Excitation Shutdown

Field volts shut down after a time delay if   exciter field volts exceed 100 +/- 5Vdc

Under Frequency Protection

50Hz system presets knee point at 45Hz

(Factory Knee Point Setting)

60Hz system presets knee point at 55Hz

Environment

Operation Temperature : -40 - +60 °C

Storage Temperature : -40 - +85 °C

Relative Humidity : Max. 95%

Vibration : 1.5Gs @ 5-30Hz      5.0Gs @ 30-500Hz

AVR Control Function

VOLT : Voltage adjustment

STAB : Stability adjustment

SW : Voltage or frequency selectable

VAR : Ex. VR

Dimension

107.0 (L) x 75.0 (W) x 47.0 (H) mm

Weight

175 g +/- 2%
