Kutai Basler Voltage Regulator AVR AVC63-4D EA350
AVC63-4D AVR
EA350 AVR
introduction
Warranty: 1 Year
Gross Weight: 0.3kg
Stock Status: In stock
Part No. : EA350 AVC63-4D
Replaced Brand: Kutai
Function: Kutai AVR EA350
Usage: Kutai EA350 AVR
Compatible with: Basler AVR AVC63-4D
Product Name: Basler AVC63-4D AVR

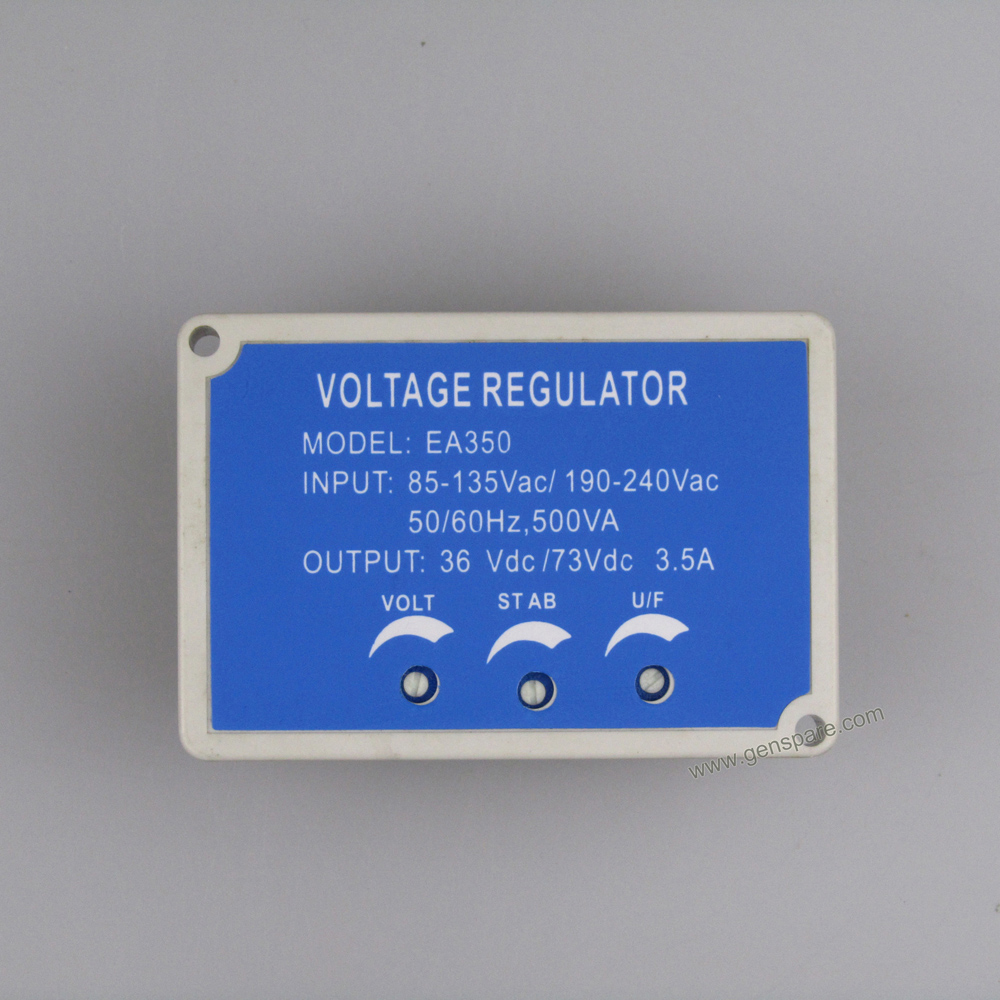

Kutai Basler Voltage Regulator AVR AVC63-4D EA350
EA350 Product Specification Download.pdf
We have Kutai EA350 AVR in our regular stock!
Kutai Voltage Regulator EA350 is compatible with Marathon SE350 AVR and Basler AVR AVC63-4D
The Brands / Part No. here are for reference purpose only, our parts can exactly replace the original ones.

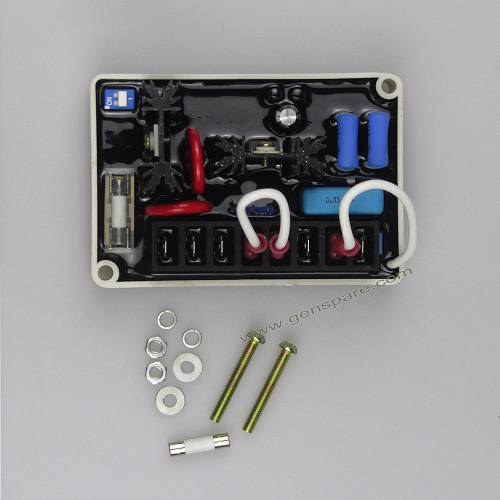

Features of KUTAI AVR EA350
Automatic Voltage Regulator 73 Vdc 3.5 Amp
*SE350 and AVC63-4D AVR only fits 220 Vac generators, please use EA350-220V for direct replacement
Ø Voltage regulation less than +/-1%
Ø Optional 120/240 Vac sensing input switch
Ø 50/60 Hz selectable
Ø Under frequency protection
Ø Built-in high breaking capacity fuse
Ø EMI Suppression
Specificationsof EA350 KUTAI AVR:ciftions
Sensing & Power Input | Voltage : 120(85-135) / 220(190-240) Vac DIP switch selectable |
Frequency : 50/60 Hz Jumper selectable | |
Output | Voltage : |
Max. 36 Vdc @ 120 Vac input | |
Max. 73 Vdc @ 240 Vac input | |
Current : | |
Continuous 3.5A | |
Intermittent 7A for 10 sec. | |
Resistance : | |
Min. 15 ohms | |
Max. 100 ohms | |
Voltage Regulation | Less than +/-1% (with 4% engine governing) |
Build Up Voltage | Residual volts at AVR terminal > 5 Vac |
EMI Suppression | Internal electromagnetic interference filtering |
External Voltage Adjustment | +/-5% @ 1K ohm 1 watt trimmer |
+/-10% @ 2K ohm 1 watt trimmer | |
Unit Power Dissipation | Max. 8 watts |
Under Frequency Protection | 50 Hz system presets knee point at 45-51 Hz |
(Factory Knee Point Setting) | 60 Hz system presets knee point at 54-61 Hz |
Environment | Operation Temperature : -40 to +60 °C |
Storage Temperature : -65 to +85 °C | |
Relative Humidity : Max. 95% | |
Vibration : | |
1.3Gs @ 5-26 Hz | |
5.0Gs @ 52-1000 Hz | |
AVR Control Function | VOLT : Voltage adjustment |
STAB : Stability adjustment | |
U/F : Setting under frequency protection knee point | |
Dimension | 98.7 (L) x 67.0 (W) x 47.5 (H) mm |
Weight | 205 g +/-2% |
