AVC63-7 AVR
AVC63-7F AVR
Warranty: 1 Year
Gross Weight: 0.6kg
Stock Status: In stock
Part No. : AVC63-7, AVC63-7F
Replaced Brand: Basler
Function: Basler AVR AVC63-7
Usage: Basler AVC63-7 AVR
Compatible with: Basler AVR
Product Name: Basler Voltage Regulator
Basler Voltage Regulator AVR AVC63-7 AVC63-7F
AVC63-7, AVC63-7F Specification Download.pdf
We have Basler AVR AVC63-7 and Basler AVR AVC63-7F in our regular stock!
BE350,AVC63-4, AVC63-4A, AVC63-7, AVC63-7F, AVC63-12, AVC63-12A1, AVC63-12A2, AVC63-12B1, AVC63-12B1. AVC125-10, AVC125-10A1, AVC125-10A2, AVC125-10B1, AVC125-10B2.
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.

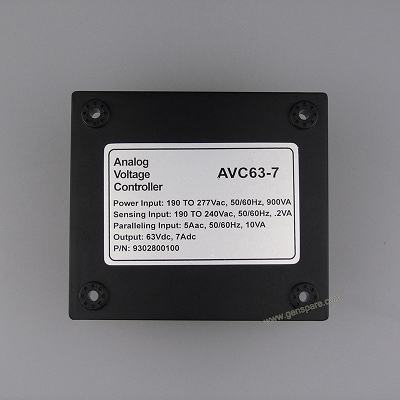

The Basler AVC63-7 AVR Voltage Regulator is an encapsulated unit contained in a plastic case. The regulator controls the dc exciter field power of conventional, 50 or 60 Hz brushless generators that have a 63 Vdc exciter field to regulate the generator output voltage. Regulation is provided by sensing the generator output voltage, converting it to a dc signal and comparing the signal to a reference voltage signal. An error signal is developed and used to control the dc field power in order to maintain a constant generator output.
Basler AVC63-7 Series Specifications | ||||||||||||
Sensing Input | Paralleling Provisions | DC Output | Exciter Field Resistance | Power Input | ||||||||
Model | Voltage Adjust Range | Burden | Current Input | Burden | Max. Cont. | Max. Forcing 10 Sec (240 Vac Input) | Min. Ohms @ 25℃ | Max. Ohms | Single Phase Voltage Range | Burden | ||
AVC63-7 | 190-240Vac +-10% | <5VA | 5 Amp | 2.5VA | 63Vdc | 7Adc | 105Vac | 11.5Adc | 9Ω | 100Ω | 190-2770Vac +-10% (50/60Hz) | 900VA |
AVC63-7S | N/A | |||||||||||
AVC63-7F | 380-480Vac +-10% | 5 Amp | 2.5VA | |||||||||
AVC63-7FS | N/A | |||||||||||
AVC63-7-1A | 190-240Vac +-10% | 1 Amp | 0.1VA |
PHYSICAL SPECIFICATIONS of Basler Voltage Regulator AVC63-7
Temperature Operating: –40 to 60°C (–40 to 140°F)
Storage: –65 to 85°C (–85 to 185°F)
Vibration
Withstands 1.2 G at 5 to 26 Hz; 0.036" double amplitude at 27 to 53 Hz; 5 G at 53 to 1,000 Hz.
Shock
Withstands up to 15 G in each of three mutually perpendicular axes.
Weight 17 oz (482 g) net.
ELECTRICAL SPECIFICATIONS of AVC63-7 Basler AVR
DC Output Power:
7 Adc at 63 Vdc maximum continuous with a 240 Vac input.
Exciter Field DC Resistance:
9.0 ohms minimum.
AC Power Input:
170 to 305 Vac, single-phase, 50/60 Hz.
Burden: 900 VA maximum at 240 Vac power.
AC Sensing Voltage:
170 to 264 Vac, single-phase, 50/60 Hz.
Burden: 5 VA.
Voltage Adjust Range:
170 to 264 Vac using the internal voltage adjust. The external voltage adjust provides a ±10% adjustment of the nominal value determined by the internal voltage adjust.
Regulation Accuracy ±0.25% Voltage Drift
FEATURES for Basler AVC63-7F AVR
• Integrated circuitry for compact size, simplicity, high reliability.
• Extremely rugged.
• Exciter field current 7A continuous, 11.5A forcing.
• Regulation accuracy better than ± .25% no load to full load.
• Fast response. • Frequency compensation.
• Built-in parallel droop compensation (optional).
• EMI suppression.
• CSA certified.
• Gost R certified #POCC US.ME05.B03392.
• Qualified to the requirements of: - IEEE C37.90.1 for Surge Withstand Capability. - ASTM B117-73, Method 711-1C, for Salt Fog.
SPECIFICATIONS for Basler AVC63-7F Voltage Regulator
REGULATION ACCURACY: Better than ±.25% no load to full load.
RESPONSE TIME: Less than 1.5 cycles for ±5% change in sensing voltage.
EMI SUPPRESSION: Internal electromagnetic interference filtering.
VOLTAGE BUILDUP: Internal provisions for automatic voltage buildup from generator residual voltages as low as 6 Vac.
TERMINATIONS: 1/4 “Fast-On” Terminals
POWER DISSIPATION: 35 Watts maximum.
OPERATING TEMPERATURE: -40°C (-13°F) to +60°C (+140°F).
STORAGE TEMPERATURE: -40°C (-40°F) to +85°C (+185°F).
VIBRATION: Withstands 1.2 Gs at 5 to 26 Hz; 0.036” double amplitude at 27 to 52 Hz; and 5 Gs at 53 to 1000 Hz.
SHOCK: Withstands up to 15 Gs in each of three mutually perpendicular axes.
WEIGHT: 10 oz. (0.28 kg) Net.
