Voltage Regulator GAVR AVR 15A AVR-15A GAVR-15A

GAVR-15A Product Specification Download.pdf

We have AVR-15A AVR in our regular stock!

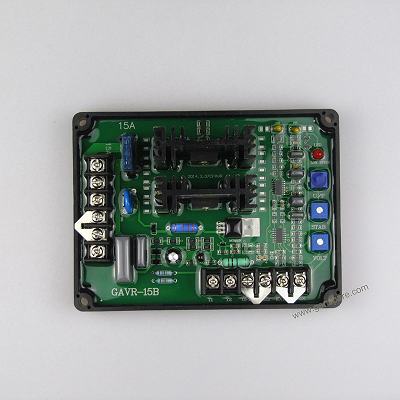

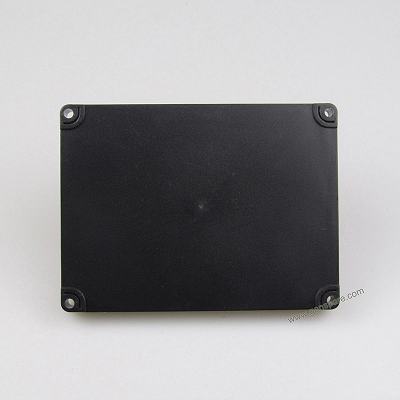

Universal AVR 15A 1/2 Wave Self Excited Dip-Switch Programmalbe Automatic Voltage Regulator

Features of GAVR 15A

• < 0.5% Regulation

• 220/400 VAC Programmable Input

• Rugged Compact Design

• With Under Frequency Protection

• Soft Start Voltage Ramping

• EMI Suppression

• Built-in High Capacity 15Amp Fuse

Specifications for AVR-15A

²  Sensing lnput of AVR-15A AVR: Voltage 2201-l00V AC.I phase2wire

²  Power Input of AVR GAVR-15A : Voltage 180-240VAC.I phase2wire

²  Voltage Build-up: Residual volts at A VR terminal >5VAC

²  External Volts Adjustment: ±7% with 1K 1watt trimmer

²  Output Voltage Max.90VDC@240VACinput

²  Resistance Min.IOQ Max.100Q

²  Current Continuous 6A

²  Intermittent 12A for IOSEE.

²  Soft Start Ramp Time 3sec.

²  Unit Power Dissipation: Max.8Wall

²  EMI Suppression: Internal Electromagnetic Interference Filtering

²  Thermal. Drift: 0.05%per change in AVR ambient

²  Under Frequency Protection 60Hz system presets knee point at 57Hz

²  (Factory Settings) 50Hz system presets knee point at 47Hz

²  Volt Regulation < 0.5%(with 4%engine governing)

Environment of GAVR-15A

Vibration 3G@ IOO-2K Hz

Relative Humidity < 95%

Operating Temperature -40-65 DC

Storage Temperature -40-85 DC

Physical Specifications of Voltage Regulator AVR-15A

Dimensions 157.0(L)117.0(W)70.0(H)mm
