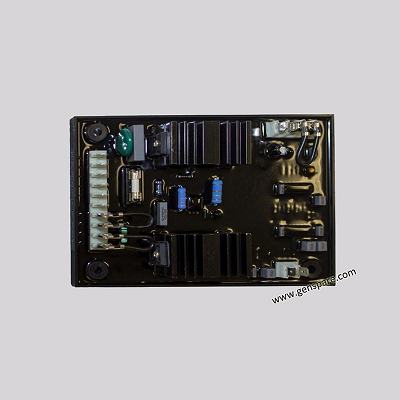

Engga Generator AVR Voltage Regulator WT-2

Engga WT-2 AVR Product Specification Download.pdf

We have ENGGA WT-2 AVR in our regular stock!

The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.

The Engga AVR WT-2 is an encapsulated unit contained in a plastic case. The WT-2 Engga AVR controls the dc exciter field power of conventionla 50 or 60 Hz brushless generators that have a max 63Vdc exciter field to regulate the generator output voltage. Regulation is provided by sensing the generator output voltage, Converting it to a dc signal and comparing the signal to a reference voltage signal. An error signal is develped and used to control the dc dield power in order to maintain a constant generator output.

·         Input Voltage of Engga Generator AVR WT-2: 190-264V ac

·         Frequency of WT-2 Engga Voltage Regulator: 50/60 Hz nominal

·         Output Voltage for Engga Generator Voltage Regulator WT-2: 90V DC

·         Current: continuous 8A dc,Intermittent 15A for 10 secs

·         Regulation: +/- 1%

Diagram of WT-2 Engga Generator AVR
