GAC Electric Engine Generator Actuator ADC120S-24 ADC120-24

ADC120 SERIES Product Specification Download.pdf

We have GAC Electric Actuator ADC120-24 in our Regular Stock!

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.

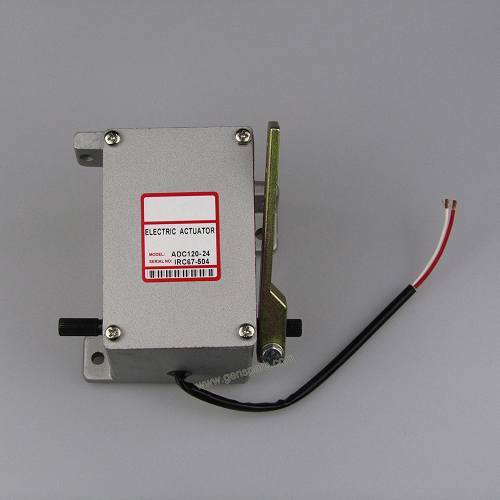

GAC Engine Actuator ADC120S-24

• Rotary output linear torque proportional servo

• Small, low cost, low friction model

• 1.0 lb-ft of torque, 25° rotation, < 32 msec. response

• Suitable for rotary or small inline fuel pumps of small carburetors

• Ideal for fuel systems on engines up to 150 HP




The GAC Generator Actuator ADC120-24 is a rotary output, liner torque, proportional servo. This electromechanical actuator is typically used as an engine fuel control positioning device. An internal spring provides fail safe operation by forcing the GAC Generator Actuator ADC120 to the fuel shut off position when the actuator is de-energized. This design combines fast operation, multi-voltage usage, wider rotation angles, and proven reliability. The GAC ADC120S-24 Generator Actuator can operate directly from 12, 24, or 32 volt battery supplies.

The speed of operation of the GAC ADC120S-24 Generator Actuator is typically faster  than competitive units, thus it provides more stable and rapid response to transient conditions.

Applications include most block pumps, with or without mechanical governors, distributor type pumps, and medium sized carbureted engines. The 25 degrees of rotation expands the application to a wider variety of engines.

The GAC Engine Actuator ADC120-24 is an electromagnetic servo device which can be intergrated into a closed loop control system. An engine control system can be described as follows. An electrical signal is generated by a magnetic speed sensor which is proportional to engine speed setting are not equal, a change in current from the speed control unit to the actuator will change the magnetic force in the actuator.

The rotation of the actuator shaft will then adjust the fuel to the engine and cause the engine speed to be equal to the preset engine setting. Shaft rotation is proportional to the amount of actuator current and counterbalanced by the internal spring.

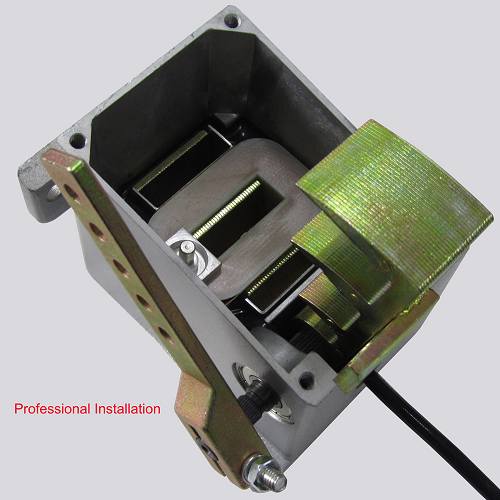

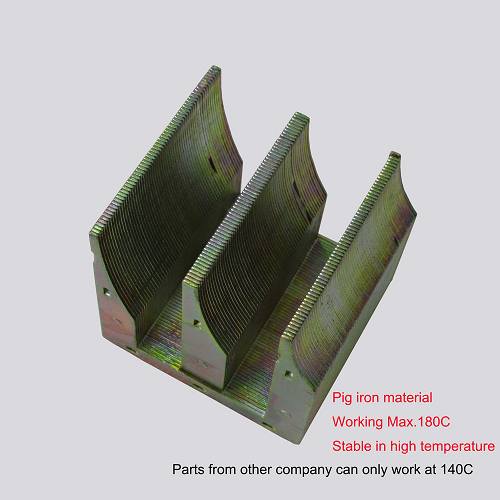

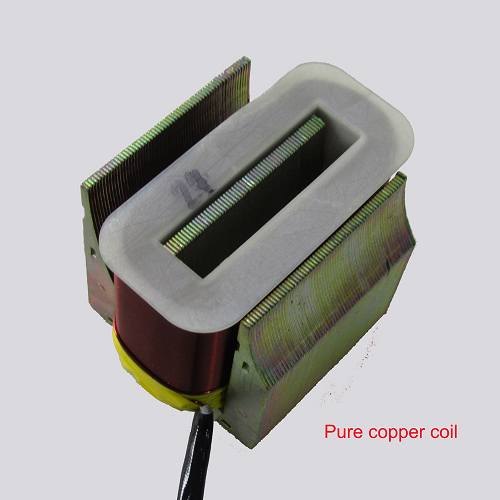

Since the design has no sliding parts and is totally sealed, outstanding reliability results. A single compression spring is used to improve reliability. No maintenance is necessary.

Specifications of GAC Engine Actuator ADC120S-24

Performance for ADC120 GAC Electric Actuator

   Available Torque-------------------------------------------------------Max 1.0 lb-ft (1.4 Nm)

   Maximum Operating Shaft Angular Travel----------------------- 25+-1 degree CW/ CCW

Power Input of ADC120S-24 GAC Electric Actuator

   Operating voltage-----------------------------------------------------12, 24 VDC

   Normal Operating Current------------------------------------------2 A at 12 VDC, 1 A at 24 VDC

   Maximum Current-Continuously Rated--------------------------6 A at 12 VDC, 3 A at 24 VDC

Environmental for ADC120-24 GAC Engine Actuator

   Temperature Range---------------------------------------------------  -65℉ to 200℉(-54℃to 95℃)

   Relative Humidity------------------------------------------------------up to 100%

   All Surface Finishes---------------------------------------------------Fungus proof and corrosion resistant

Physical for GAC Electric Actuator ADC120S-24

Dimensions--------------------------------------------------------------please contact us for product catalog

Weight-------------------------------------------------------------------4.5 lbs (2.05kg), net weight

   Mounting--------------------------------------------Any position, electrical connector at the top-preferred

Reliability of GAC Electric Actuator ADC120S-24

   Vibration-----------------------------------------------------------------up to 20 G @ 50-500 Hz

   Testing-------------------------------------------------------------------100% Tested

Mating Hardware for GAC Electric Actuator ADC120-24

   Connector (ADC120)-------------------------------------------------supplied with actuator

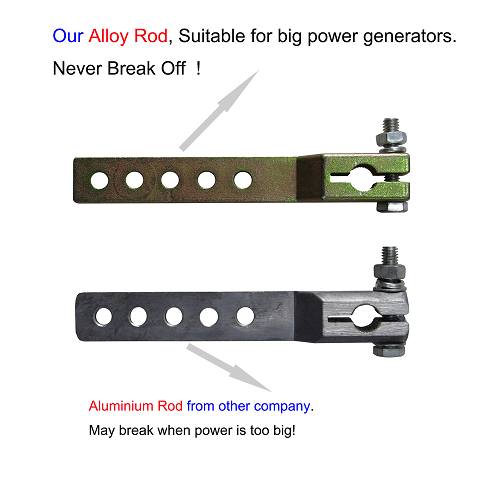

   Level----------------------------------------------------------------------LE1500-1

Rod End Bearings ( to attach a # 10-32 THD linkage rod to the lever)-------BR100 (Right Hand)

--------BR100 (Right Hand)

   Wiring Harness ADC120------------- 4 ft. harness supplied with actuator, other lengths available
