GAC Engine Genset Generator Actuator ACD175A-12 ACD175-12

ACD175A Series Product Specification Download.pdf

We have GAC Engine Actuator ACD175A-12 in our Regular Stock!

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.

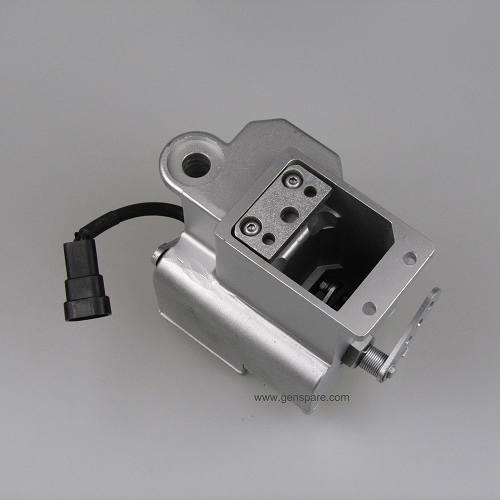

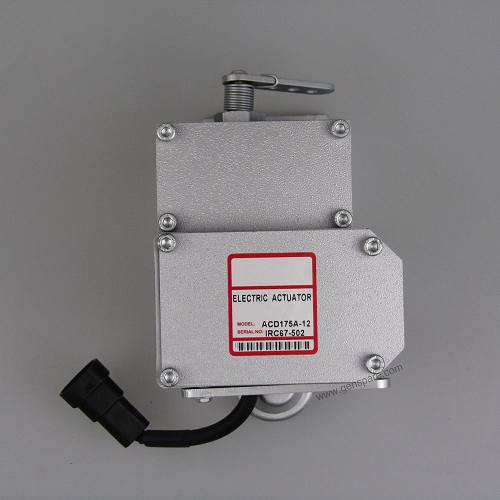

GAC Generator Actuator ACD175A-12

• Mounts directly to a Bosch P Series Fuel Injection      Pump Bosch P Style Pump Actuator

• Right-hand rack

• Capable of controlling pumps on engines up to 8-cyl.

• Includes manual shut-off mechanism

• Connects directly to the fuel rack bellows

• Compact size, fast response <35msec

• Cost effective design

• Feedback position available

The GAC ACD175A-12 Generator Actuator is designed to mount directly to inline fuel injection pumps, with a right hand rack in place of the mechanical governor. An optional external fuel shut off lever is provided to manually override the actuator’s control. Also provided, as standard equipment, is

an adjustable internal maximum fuel limit.

The GAC Engine Actuator ACD175A-12 can control fuel pumps up to 8 cylinders. The actuator was designed with two isolated chambers. The upper chamber is wet with oil and contains the connection to the fuel rack and an optional manual shut off mechanism. The sealed lower chamber contains the electromagnetic components.

Performance of GAC ACD175A-12 Engine Actuator

Force...........................................................................6.2 lbs (27.5N)

Operating Stroke.........................................................0.80 in (21mm)

Response Time (10-90% 2-19mm).......................................35 MSEC

Internal Sealing Pressure................................................2 bar (29 psi)

Electrical Power Input

Operating Voltage................................................12 VDC or 24 VDC

Coil Resistance..............................12 VDC Version- 1.7+/-0.2 OHMS

.....................................................24 VDC Version- 7.2+/-0.5 OHMS

Nominal Operating Current............................12 VDC Version- 4.0 A

......................................................................24 VDC Version- 2.0 A

Maximum Current..........................................12 VDC Version- 5.8 A

......................................................................24 VDC Version- 3.1 A

Environmental FOR ACD175A-12 GAC Generator Actuator

Operating Temperature....................-40° to +200°F (-40° to +95°C)

Relative Humidity............................................................Up to 100%

Shock...........................................................................20g @11msec

Vibration...................................................................20g, 20-500 Hz

Agency.....................................................................RoHS Compliant

Physical

Dimensions..................................................................See Figure 2-1

Weight.....................................................................4.75 lbs. (2.2 kg)

Mounting..................................................requires BYC adapter plate

Finish Specification.................................................................ES1031

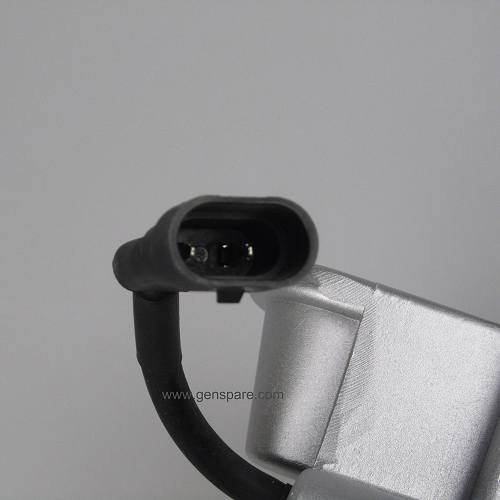

Mating Connector..................................................................EC1300

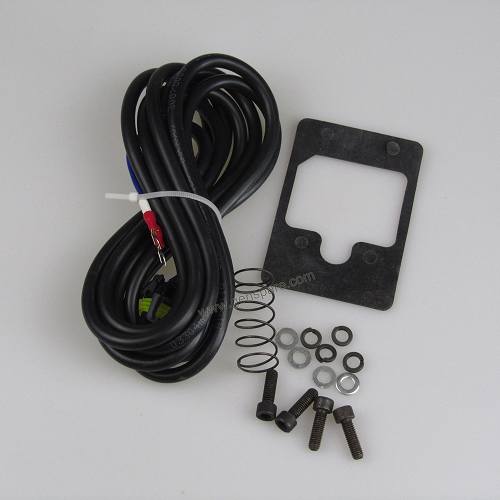

Mating Cable Harness...........................................................CH1215
