GAC Generator Speed Controller Control Unit ESD5111
ESD5111
Speed Control Unit ESD5111
introduction
Warranty: 1 Year
Gross Weight: 0.7 kg
Stock Status: In stock
Replaced Brand: GAC
Part No. : ESD5111
Function: GAC Speed Control Unit
Usage: GAC Speed Controller
Compatible with: Generator Speed Controller
Product Name: Generator Speed Control Unit
GAC Generator Speed Controller Control Unit ESD5111
(Compatible with all generators)
ESD5100 Series Product Specification Download.pdf
We have GAC Generator Speed Control Unit ESD5111 in our Regular Stock!
The Brands mentioned here are for reference only, our parts can exactly replace the original ones.
Generator Speed Controller:
Kutai: EG2000, EG3000
Fortrust Series : C1000A, C1000B, C1002, C1500B, C2001, C2002
YUNYI Series: ESD6000, ESC8000, ESS9000, ESC9800
Other Speed Governors: S6700E, S6700H
Cummins: 3044196, 3062322, 3098693, 3037359, 4914090, 4914091, 4913988, 3044195, 3032733, 3062323, 3036453, 3053065, 3030256, 3053060
GAC Sereis: ESD2210, ESD5111, ESD5221, ESD5500E, ESD5522E, ESD5550E, ESD5570E, ESD5330, LSM672N, SYC6714
Compatible Engine Brands for Speed Control Unit ESD5111
Deutz, Aksa, Volve, Kohler, Kubota, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands

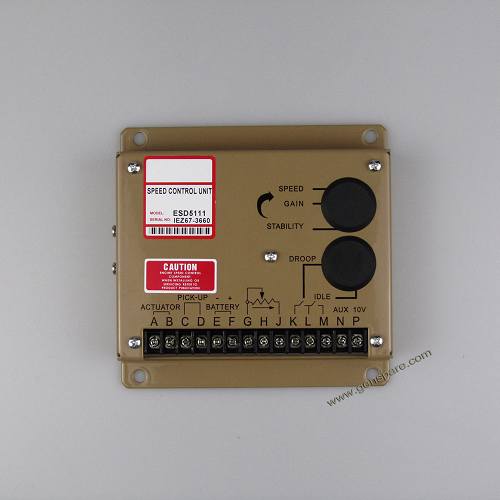

ESD5111 GAC Speed Control Unit is a closed-loop control of the entire electronic design, it's instantaneous load changes quickly and with precision control in response to engine speed when connected to the match and the implementation of e-speed magnetic sensor signals can be Control of a wide range of engines.
It is designed to be highly reliable, the engine can withstand the surrounding area within the range of electromagnetic interference.
In the design, installation and a simple pre-adjustment, including the transfer rate and adjustable idle for assistance or for multiple special-purpose machine input, as well as to prevent reverse battery voltage, the transient voltage pulse, the actuator short-circuit fault And the loss of power or speed sensor signal of the security protection
PERFORMANCE of GAC Speed Controller ESD5111 | ||
Isochronous Operation/Steady State Stability | ± 0.25% or better | |
Speed Range/Governor | 1K-7.5K Hz continuous | |
Speed Drift with Temperature | ± 1% Maximun | |
Idle Adjust CW | Min. 1200Hz. below set speed | |
Idle Adjust CCW | Min. 4100Hz. below set speed | |
Droop Range | 1-5% regulation | |
Droop Adj. Max. (K-L Jumpered) | 875Hz., ± 75Hz. per 1.0 A change | |
Droop Adj. Min. (K-L Jumpered) | 15Hz., ± 6Hz. per 1.0 A change | |
Speed Trim Range | ± 200Hz. | |
Remote Variable Speed Range | 500 -7.5Hz. or all part thereof | |
Terminal Sensitivity | J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance | |
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance | ||
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance | ||
P: 10V DC Provide @ 20ma Max. | ||
Speed Switch Adjustment Range | 1000-10000Hz. | |
ENVIRONMENTAL for GAC ESD5111 Generator Speed Control Unit | ||
Ambient Operating Temperature Range | -40°c to +85°c | |
Relative Humidity | up to 95% | |
Storage Temperature | -55°c ~ 90°c | |
Shock | 20-100HZ 500mm/Sec. | |
INPUT POWER | ||
Provide | 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) | |
Polarity | Negative Ground(Case Isolated) | |
Power Consumption | 50mA continuous plus actuator current | |
Maximum Actuator Current at 25 | 10Amps continuous | |
Speed Sensor Signal | 0.5-120 Volts RMS | |
PHYSICAL for ESD5111 GAC Generator Speed Controller | ||
Net Weight : | 630g | |
Note: The performance parameters in the frequency when measuring 4000Hzv
