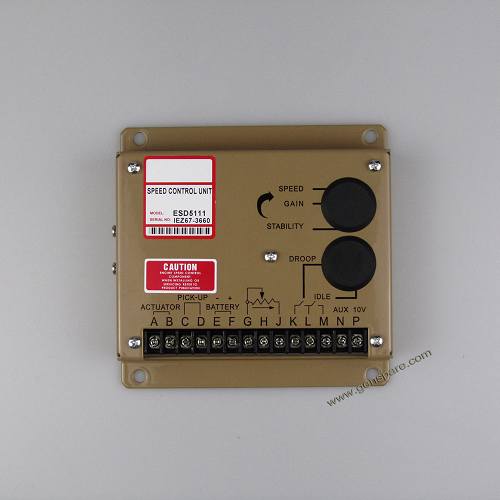

GAC Generator Speed Governor Controller ESD5111A
ESD5111A
GAC ESD5111A
introduction
Warranty: 1 Year
Gross Weight: 0.7 kg
Stock Status: In stock
Replaced Brand: GAC
Part No. : ESD5111A
Function: GAC Speed Governor ESD5111A
Usage: GAC Speed Controller ESD5111A
Compatible with: GAC ESD5111A Speed Controller
Product Name: ESD5111A Speed Governor
GAC Generator Speed Governor Controller ESD5111A
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.
Generator Speed Governor:
Kutai: EG2000, EG3000
Fortrust Series : C1000A, C1000B, C1002, C1500B, C2001, C2002
YUNYI Series: ESD6000, ESC8000, ESS9000, ESC9800
Other Speed Governors: S6700E, S6700H
Cummins: 3044196, 3062322, 3098693, 3037359, 4914090, 4914091, 4913988, 3044195, 3032733, 3062323, 3036453, 3053065, 3030256, 3053060
GAC Sereis: ESD2210, ESD5111, ESD5221, ESD5500E, ESD5522E, ESD5550E, ESD5570E, ESD5330, LSM672N, SYC6714
Compatible Engine Brands for Speed Controller ESD5111A
Deutz, Aksa, Volve, Kohler, Kubota, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands
ESD5111A engine speed controller is a closed-loop control of the entire electronic design, it's instantaneous load changes quickly and with precision control in response to engine speed when connected to the match and the implementation of e-speed magnetic sensor signals can be Control of a wide range of engines.
It is designed to be highly reliable, the engine can withstand the surrounding area within the range of electromagnetic interference.
In the design, installation and a simple pre-adjustment, including the transfer rate and adjustable idle for assistance or for multiple special-purpose machine input, as well as to prevent reverse battery voltage, the transient voltage pulse, the actuator short-circuit fault And the loss of power or speed sensor signal of the security protection
PERFORMANCE of GAC speed governor ESD5111A | ||
Isochronous Operation/Steady State Stability | ± 0.25% or better | |
Speed Range/Governor | 1K-7.5K Hz continuous | |
Speed Drift with Temperature | ± 1% Maximun | |
Idle Adjust CW | Min. 1200Hz. below set speed | |
Idle Adjust CCW | Min. 4100Hz. below set speed | |
Droop Range | 1-5% regulation | |
Droop Adj. Max. (K-L Jumpered) | 875Hz., ± 75Hz. per 1.0 A change | |
Droop Adj. Min. (K-L Jumpered) | 15Hz., ± 6Hz. per 1.0 A change | |
Speed Trim Range | ± 200Hz. | |
Remote Variable Speed Range | 500 -7.5Hz. or any part thereof | |
Terminal Sensitivity | J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance | |
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance | ||
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance | ||
P: 10V DC Provide @ 20ma Max. | ||
Speed Switch Adjustment Range | 1000-10000Hz. | |
ENVIRONMENTAL | ||
Ambient Operating Temperature Range | -40°c to +85°c | |
Relative Humidity | up to 95% | |
Storage Temperature | -55°c ~ 90°c | |
Shock | 20-100HZ 500mm/Sec. | |
INPUT POWER | ||
Provide | 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) | |
Polarity | Negative Ground(Case Isolated) | |
Power Consumption | 50mA continuous plus actuator current | |
Maximum Actuator Current at 25 | 10Amps continuous | |
Speed Sensor Signal | 0.5-120 Volts RMS | |
PHYSICAL | ||
Weight | 630g | |
Note: The performance parameters in the frequency when measuring 4000Hzv
