Gasoline Engine Generator Speed Controller Control Unit Governor
Gasoline Engine Speed Governor
Gasoline Generator Speed Control Unit
introduction
Warranty: 1 Year
Stock Status: In stock
Replaced Brand: GAC,Cummins,Kutai
Function: Gasoline Generator Speed Control Unit
Usage: GAS Engine Speed Control Unit
Compatible with: Gasoline Engine Speed Governor
Product Name: Gasoline Generator Speed Governor
Gasoline Engine Generator Speed Controller Control Unit Governor
We have Gasoline Engine Speed Control Unit in our Regular Stock!
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.
Gasoline Generator Speed Governor:

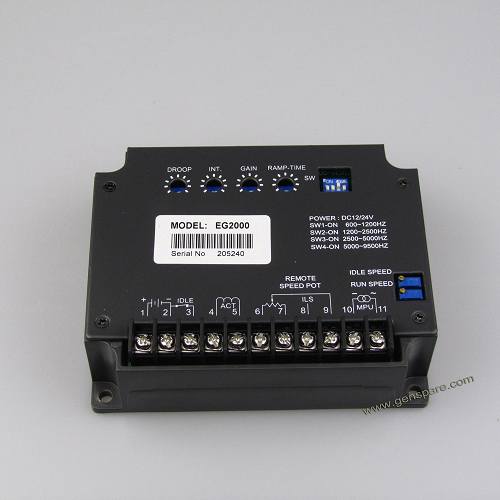

Kutai: EG2000, EG3000

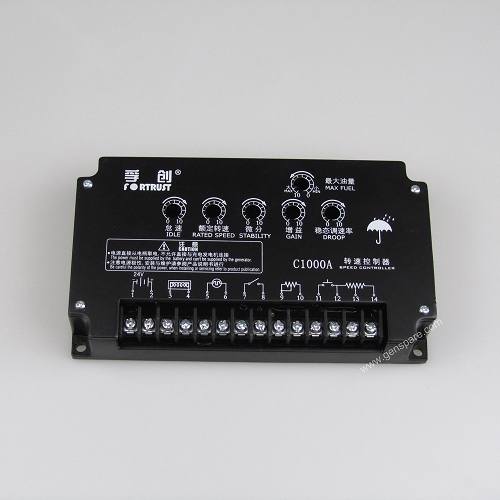

Fortrust Series : C1000A, C1000B, C1002, C1500B, C2001, C2002

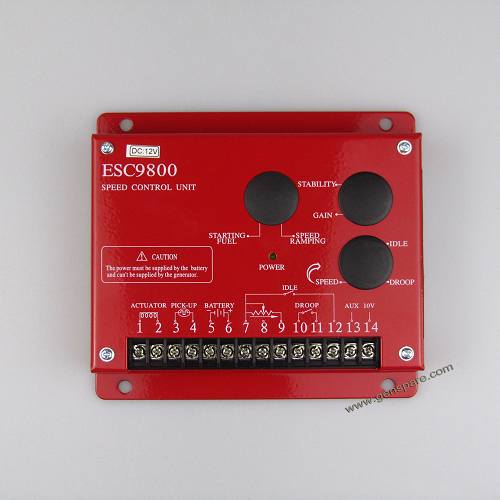

YUNYI Series: ESD6000, ESC8000, ESS9000, ESC9800
Other Speed Governors: S6700E, S6700H

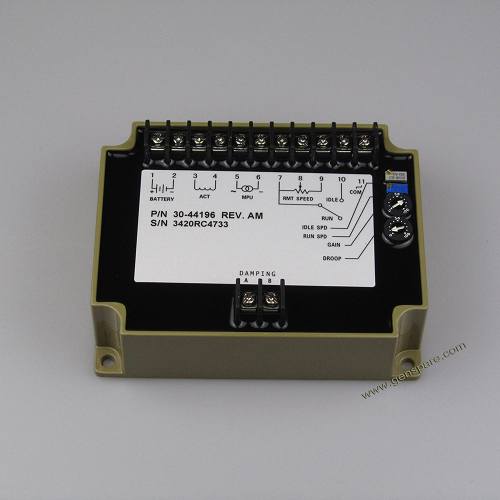

Cummins: 3044196, 3062322, 3098693, 3037359, 4914090, 4914091, 4913988, 3044195, 3032733, 3062323, 3036453, 3053065, 3030256, 3053060
GAC Sereis: ESD2210, ESD5111, ESD5221, ESD5500E, ESD5522E, ESD5550E, ESD5570E, ESD5330, LSM672N, SYC6714
Compatible Engine Brands for ESD5500E Gasoline Engine Speed Controller
Deutz, Aksa, Volve, Kohler, Kubota, Mitsubish, WeiChai, ShangChai, Yuchai, Quanchai, Ricardo, Steyr, HZTZ and many more Brands

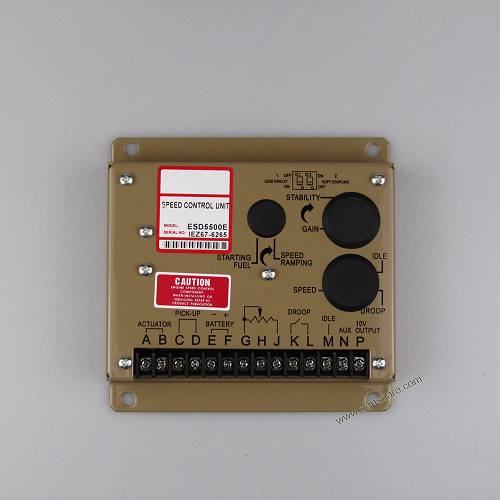

The Gasoline Generator Control Unit ESD5500E is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist, or condensation may come in contact with controller, it should be mounted vertically. This will allow the fluid to drain away from the speed control unit.
TECHNICAL SPECIFICATIONS of ESD5500E Gasoline Generator Speed Control Unit | ||
Isochronous Operation/Steady State Stability | ± 0.25% or better | |
Speed Range/Governor | 1K-7.5K Hz continuous | |
Speed Drift with Temperature | ± 1% Maximun | |
IDLE Adjustment | 160 ± 20Hz ~ 60% of set speed | |
Droop adjustment Min.(K-L Jumpered) | 15Hz. ± 6Hz. per 1.0 A change | |
Droop adjustment Max.(K-L Jumpered) | 400Hz. ± 75Hz. per 1.0 A change | |
Droop Adj. Max. (K-L Jumpered) | 875Hz., ± 75Hz. per 1.0 A change | |
Droop Adj. Min. (K-L Jumpered) | 15Hz., ± 6Hz. per 1.0 A change | |
Speed Trim Range | ± 200Hz. | |
Remote Variable Speed Range | 500 -7.5Hz. or all part thereof | |
Terminal Sensitivity | J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance | |
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance | ||
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance | ||
P: 10V DC Provide @ 20ma Max. | ||
Speed Switch Adjustment Range | 1000-10000Hz. | |
ENVIRONMENTAL of Gasoline Generator Speed Governor: | ||
Ambient Operating Temperature Range | -40°c to +85°c | |
Relative Humidity | up to 95% | |
Storage Temperature | -55°c ~ 90°c | |
Shock | 20-100HZ 500mm/Sec. | |
INPUT POWER: | ||
Provide | 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) | |
Polarity | Negative Ground(Case Isolated) | |
Power Consumption | 50mA continuous plus actuator current | |
Actuator Current Range @ 25°c-(Inductive Load) | Min. 2.5 Amps, Max. 10 Amps continuous | |
Speed Sensor Signal | 0.5-120 V RMS | |
Speed Switch Relay Contacts(N.O.and N.C.) | 10Amp | |
PHYSICAL | ||
Weight | 650g | |
Note: The performance parameters in the frequency when measuring 4000Hz
