Cummins Engine Speed Control Unit Controller 3062322

3062322

Cummins 3062322



introduction

Warranty: 1 Year

Gross Weight: 1 kg

Stock Status: In stock

Replaced Brand: Cummins

Part No. : 3062322

Function: Cummins Speed Control Unit 3062322

Usage: Cummins Speed Controller 3062322

Product Name: 3062322 Cummins Speed Control Unit

Compatible with: Cummins Engine Speed Controller 3062322

Cummins Engine Speed Control Unit Controller 3062322



We have Cummins Engine Speed Controller 3062322 in our Regular Stock!

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.



Engine Speed Control Unit :

Kutai: EG2000, EG3000

Fortrust Series : C1000A, C1000B, C1002, C1500B, C2001, C2002

YUNYI Series: ESD6000, ESC8000, ESS9000, ESC9800

Other Speed Governors: S6700E, S6700H

Cummins: 3044196, 3062322, 3098693, 3037359, 4914090, 4914091, 4913988, 3044195, 3032733, 3062323, 3036453, 3053065, 3030256, 3053060

GAC Sereis: ESD2210, ESD5111, ESD5221, ESD5500E, ESD5522E, ESD5550E, ESD5570E, ESD5330, LSM672N, SYC6714

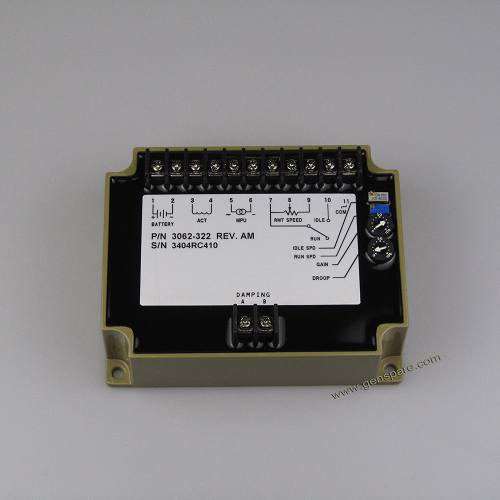

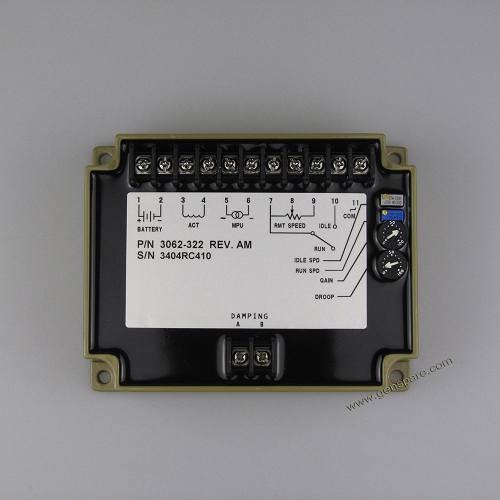

Cummins Speed Control Unit 3062322 is an engine speed controller designed by all electronic device for CUMMINS’s actuator, It can fast and precise response to transient load changes. It has a wide speed control range. For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters all work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.

 Speed Controler-1.jpg

SPECIFICATIONS & PERFORMANCE of 3062322 Cummins Speed Controller
Operating Voltage: 12 or 24 volts ±20%
Steady State Speed Band: ±0.25%
Ambient Operating Temperature: -40
to +85
Temperature Stability: Better than ±0.5% over temperatures of -40
to +125
Mechanical Vibration: Withstands the following vibration without failure or degraded performance: 0.06 inch double amplitude at 5 to 18 Hz; 1 G at 18 to 30 Hz Connections: Terminal strip
Enclosure: Die cast aluminum
Weight: 635 grams (1.4 lbs.) Magnetic Pickup Frequency Range: 2500 - 5000 Hz Output Signal: PWM current to 6A at max.
Actuator Compatibility: EFC3408326, DYNA7000

Electronic fuel control(EFC)

SPECIFICATION:

RPM Stability:

<±0.25%

Speed Range:

1KHz ~ 6.5KHz

Thermal Stability:

Max ±0.7%

IDLE Regulation:

260 ±20Hz

DROOP Regulation:

Minimum 15Hz ±6Hz/ 1 Amp

Maximum:  400Hz ±75Hz/ 1 Amp

External Speed Regulation:

±200Hz  (with 1 KΩ connected)

AUX Input Sensitivity:

148Hz / 1V., ±10Hz

Impedance:

1MΩ

Working Temp Range:

-40 ~ 85 °C

ENVIRONMENT for Cummins 3062322 Speed Control Unit

Working Humidity Range:

Maximum 95%

Stocking Temp:

-55 ~ 92 °C

Shocking:

20-100HZ  500mm/Sec.

INPUT POWER PROVIDE:

Voltage:

24V

Grounding Pole:

Negative pole
