GAC Generator Magnetic Pickup Speed Sensor MSP676
Generator speed sensor
Generator magnetic pickup
introduction
Warranty: 1 Year
Gross Weight: 0.15 kg
Stock Status: In stock
Replaced Brand: GAC
Part No. : MSP676
Function: Generator speed sensor
Usage: Generator magnetic pickup
Product Name: GAC Magnetic Pickup
Compatible with: GAC Speed Pickup MSP676

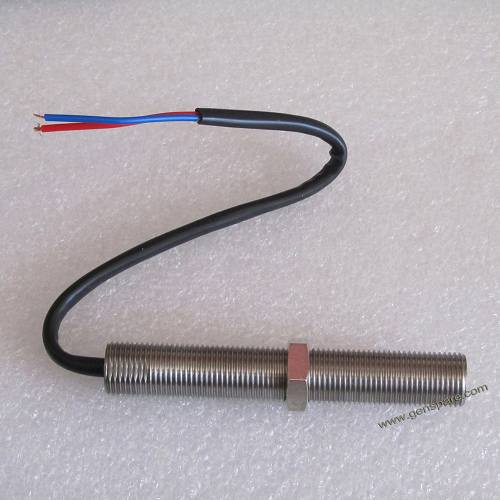

GAC Generator Magnetic Pickup Speed Sensor MSP676
GAC MPU Product Specification Download.pdf
We have GAC generator speed sensor MSP676 in our regular stock!
The Brands here are for reference purpose only, our parts can exactly replace the original ones.
The GAC MSP676 generator magnetic pickup detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the MSP676 GAC Magnetic Speed Sensor, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available.
5/8-18 UNF Threaded Generator Speed Sensor | |||||
Product # | Thread Length | Harness Length | Connector | With Mating Connector | |
MSP674 | 3in [76.2mm] | High Output 913Ω | Military | No | |
MSP675 | 3.19in [81mm] | 7in [178mm] | Flying Leads | No | |
GAC MSP676 Generator Speed Sensor | 5in [127mm] | 1ft [0.3m] | Flying Leads | No | |
MSP677 Diesel Engine Magnetic Pickup Sensor | 3in [76mm] | na | Military | No | |
MSP678 Engine Magnetic Speed Sensor | 4.86in [123.4mm] | na | Military | No | |
MSP679 Engine Speed Sensor | 3in [76.2mm] | na | Military | Yes | |
MSP6710 | 4.86in [123.4mm] | na | Military | Yes | |
MSP6719 | 2.37in [60.2mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6720 | 3.86in [98.1mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6721 | 3.19in [81mm] | 2.75in [70mm] | Automotive | No | |
MSP6721C | 3.19in [81mm] | 2.75in [70mm] | Automotive | Yes | |
MSP6722 | 2.37in [60.2mm] | 6in [152mm] | Push-On Terminals | No | |
MSP6728 | 3.19in [81mm] | 6.25in [159mm] | Packard | No | |
MSP6728C | 3.19in [81mm] | 6.25in [159mm] | Packard | Yes | |
MSP6732 | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | No | |
MSP6732C | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | Yes | |
MSP6743 | 3.5in [89mm] | High Output 1.2kΩ | #8-32NC-2A Threaded Stud Terminals | No | |
