GAC Magnetic Speed Pickup Sensor MSP677
MSP677
Speed Pickup Sensor MSP677
introduction
Warranty: 1 Year
Gross Weight: 0.15 kg
Stock Status: In stock
Replaced Brand: GAC
Part No. : MSP677
Function: GAC MSP677 Magnetic Speed Sensor
Usage: GAC Speed Sensor MSP677
Product Name: GAC Magnetic Pickup MSP677
Compatible with: GAC Speed Pickup MSP677

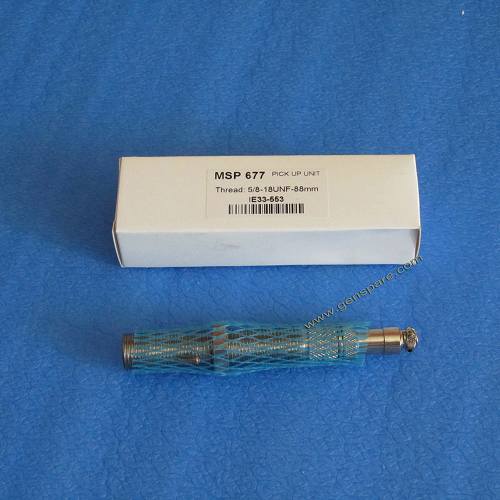

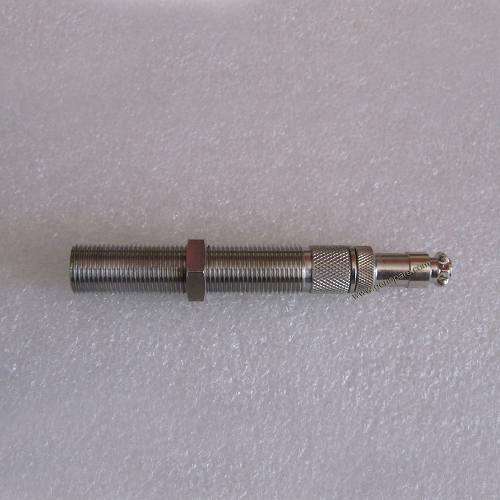

GAC Magnetic Speed Pickup Sensor MSP677
We have GAC Speed Sensor MSP677 in our regular stock!
The Brands here are for reference purpose only, our parts can exactly replace the original ones.
The GAC MSP677 Speed Sensor detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from GAC Magnetic Pickup MSP677, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available.
5/8-18 UNF Thread Speed Sensor | |||||
Product # | Thread Length | Harness Length | Connector | With Mating Connector | |
MSP674 | 3in [76.2mm] | High Output 913Ω | Military | No | |
MSP675 | 3.19in [81mm] | 7in [178mm] | Flying Leads | No | |
MSP676 | 5in [127mm] | 1ft [0.3m] | Flying Leads | No | |
GAC Speed Pickup MSP677 | 3in [76mm] | na | Military | No | |
MSP678 | 4.86in [123.4mm] | na | Military | No | |
MSP679 | 3in [76.2mm] | na | Military | Yes | |
MSP6710 | 4.86in [123.4mm] | na | Military | Yes | |
MSP6719 | 2.37in [60.2mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6720 | 3.86in [98.1mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6721 | 3.19in [81mm] | 2.75in [70mm] | Automotive | No | |
MSP6721C | 3.19in [81mm] | 2.75in [70mm] | Automotive | Yes | |
MSP6722 | 2.37in [60.2mm] | 6in [152mm] | Push-On Terminals | No | |
MSP6728 | 3.19in [81mm] | 6.25in [159mm] | Packard | No | |
MSP6728C | 3.19in [81mm] | 6.25in [159mm] | Packard | Yes | |
MSP6732 | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | No | |
MSP6732C | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | Yes | |
MSP6743 | 3.5in [89mm] | High Output 1.2kΩ | #8-32NC-2A Threaded Stud Terminals | No | |
