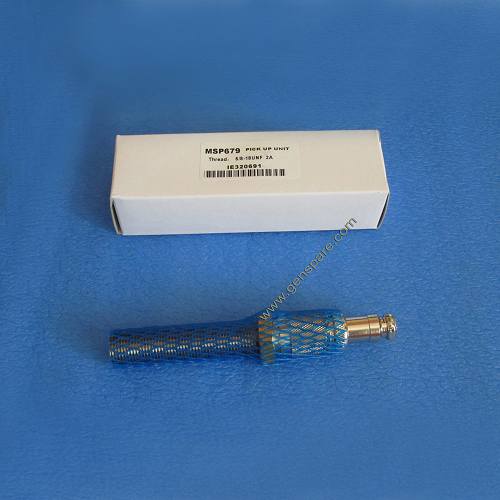

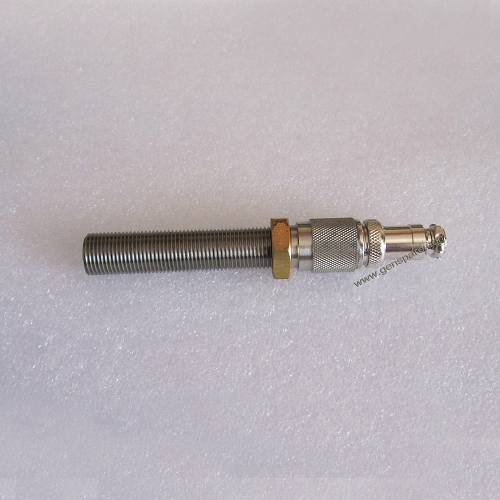

GAC Magnetic Speed Pickup Sensor MSP679
MSP679
GAC Pickup Sensor MSP679
introduction
Warranty: 1 Year
Gross Weight: 0.15 kg
Stock Status: In stock
Replaced Brand: GAC
Part No. : MSP679
Function: GAC MSP679 Magnetic Speed Sensor
Usage: GAC Speed Sensor MSP679
Product Name: GAC Magnetic Pickup MSP679
Compatible with: GAC Speed Pickup MSP679
Generator Magnetic Speed Pickup Sensor MPU MSP679
We have GAC Magnetic Speed Sensor MSP679 in our regular stock!
The Brands here are for reference purpose only, our parts can exactly replace the original ones.
The GAC Speed Sensor MSP679 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the GAC MSP679 Magnetic Pickup, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available.
5/8-18 UNF Threaded | |||||
Product # | Thread Length | Harness Length | Connector | With Mating Connector | |
MSP674 | 3in [76.2mm] | High Output 913Ω | Military | No | |
MSP675 | 3.19in [81mm] | 7in [178mm] | Flying Leads | No | |
MSP676 | 5in [127mm] | 1ft [0.3m] | Flying Leads | No | |
MSP677 | 3in [76mm] | na | Military | No | |
MSP678 | 4.86in [123.4mm] | na | Military | No | |
MSP679 MPU | 3in [76.2mm] | na | Military | Yes | |
MSP6710 | 4.86in [123.4mm] | na | Military | Yes | |
MSP6719 | 2.37in [60.2mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6720 | 3.86in [98.1mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6721 | 3.19in [81mm] | 2.75in [70mm] | Automotive | No | |
MSP6721C | 3.19in [81mm] | 2.75in [70mm] | Automotive | Yes | |
MSP6722 | 2.37in [60.2mm] | 6in [152mm] | Push-On Terminals | No | |
MSP6728 | 3.19in [81mm] | 6.25in [159mm] | Packard | No | |
MSP6728C | 3.19in [81mm] | 6.25in [159mm] | Packard | Yes | |
MSP6732 | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | No | |
MSP6732C | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | Yes | |
MSP6743 | 3.5in [89mm] | High Output 1.2kΩ | #8-32NC-2A Threaded Stud Terminals | No | |
