GAC Magnetic Speed Pickup Sensor MSP6715

MSP6715

GAC MSP6715



introduction

Warranty: 1 Year

Gross Weight: 0.15 kg

Stock Status: In stock

Replaced Brand: GAC

Part No. : MSP6715

Function: GAC MSP6715 Magnetic Speed Sensor

Usage: GAC Speed Sensor MSP6715

Product Name: GAC Magnetic Pickup MSP6715

Compatible with: GAC Speed Pickup MSP6715

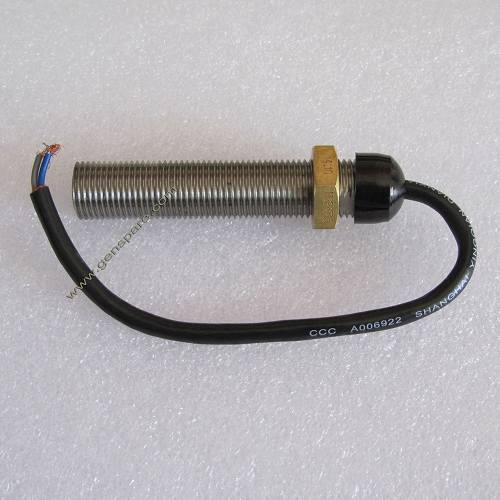

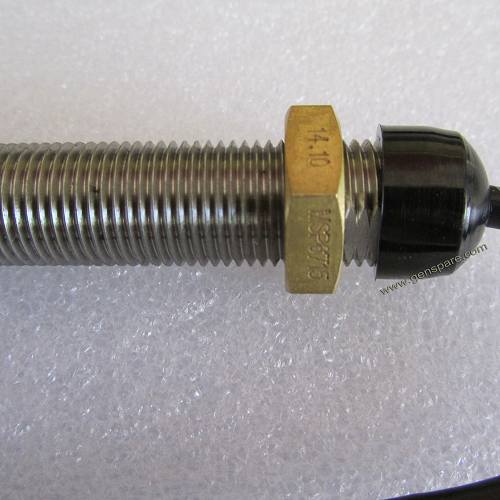

GAC Magnetic Speed Pickup Sensor MSP6715



We have GAC Speed Sensor MSP6715 in our regular stock!

The Brands here are for reference purpose only, our parts can exactly replace the original ones.



The GAC Magnetic Pickup MSP6715 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor.  Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit.  The signal from the GAC MSP6715 Magnetic Pickup, teeth per second (Hz.), is directly proportional to engine speed.  Speed sensors are available in various lengths in both U.S. and metric threads.  Wire leads, military connectors, automotive connectors or stud terminals are also available.  Over 30 styles currently available.



M16*1.5 Thread Magnetic   Pickup Speed Sensor

Product #

 Thread   Length

 Harness   Length

 Connector

 With   Mating Connector

MSP6714

3.0in   [76.2mm]

 na

Military

No

GAC Speed Pickup MSP6715

3.0in [76.2mm]

 na

Military

Yes

MSP6723

3.13in [79.4mm]

3in [76mm]

Automotive

No

MSP6723C

3.13in [79.4mm]

3in [76mm]

Automotive

Yes

MSP6739

 3.13in   [79.4mm]

3in [76mm]

Packard

No

MSP6745

5in   [127mm]

na

Military

No
