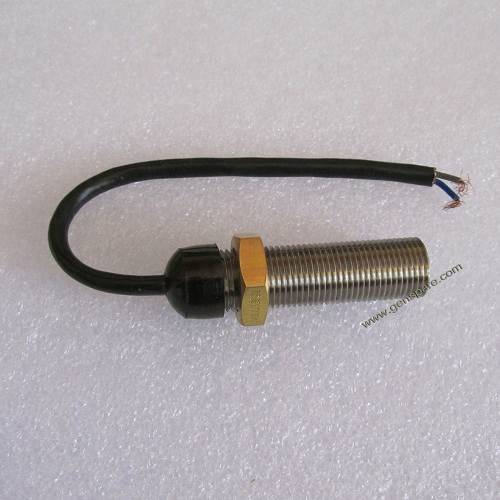

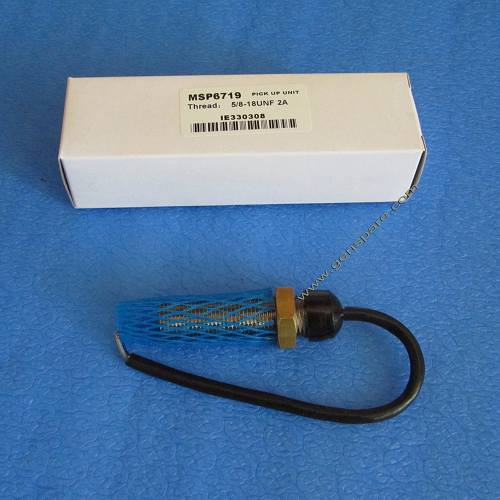

GAC Magnetic Speed Pickup Sensor MSP6719

MSP6719

GAC MSP6719



introduction

Warranty: 1 Year

Gross Weight: 0.15 kg

Stock Status: In stock

Replaced Brand: GAC

Part No. : MSP6719

Function: GAC MSP6719 Magnetic Speed Sensor

Usage: GAC Speed Sensor MSP6719

Product Name: GAC Magnetic Pickup MSP6719

Compatible with: GAC Speed Pickup MSP6719

GAC Magnetic Speed Pickup Sensor MSP6719



We have GAC MSP6719 Speed Sensor in our regular stock!

The Brands here are for reference purpose only, our parts can exactly replace the original ones.



The GAC Speed Sensor MSP6719 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor.  Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit.  The signal from the GAC Magnetic Pickup MSP6719, teeth per second (Hz.), is directly proportional to engine speed.  Speed sensors are available in various lengths in both U.S. and metric threads.  Wire leads, military connectors, automotive connectors or stud terminals are also available.  Over 30 styles currently available.



5/8-18 UNF Generator   Set Magnetic Speed Sensor


Product #

 Thread   Length

 Harness   Length

 Connector

 With   Mating Connector


MSP674

3in [76.2mm]

High Output 913Ω

 Military

No


MSP675

3.19in [81mm]

7in [178mm]

Flying   Leads

No


MSP676

5in [127mm]

1ft [0.3m]

Flying   Leads

No


MSP677

3in [76mm]

na

Military

No


MSP678

4.86in [123.4mm]

 na

Military

No


MSP679

3in [76.2mm]

 na

Military

Yes


MSP6710

4.86in [123.4mm]

 na

Military

Yes


GAC Speed Pickup MSP6719

2.37in   [60.2mm]

1ft [0.3m]   Harness

Flying   Leads

No


MSP6720

3.86in [98.1mm]

1ft [0.3m]   Harness

Flying   Leads

No


MSP6721

3.19in [81mm]

2.75in [70mm]

 Automotive

No


MSP6721C

3.19in   [81mm]

 2.75in   [70mm]

 Automotive

Yes


MSP6722

 2.37in   [60.2mm]

 6in   [152mm]

Push-On   Terminals

No


MSP6728

3.19in [81mm]

6.25in [159mm]

Packard

No


MSP6728C

 3.19in   [81mm]

6.25in [159mm]

Packard

Yes


MSP6732

3.16in [80.3mm]

3.25in [82.6mm]

Dual   Packard

No


MSP6732C

3.16in [80.3mm]

3.25in   [82.6mm]

Dual   Packard

Yes


MSP6743

3.5in   [89mm]

High Output   1.2kΩ

#8-32NC-2A   Threaded Stud Terminals

No
