MSP6721

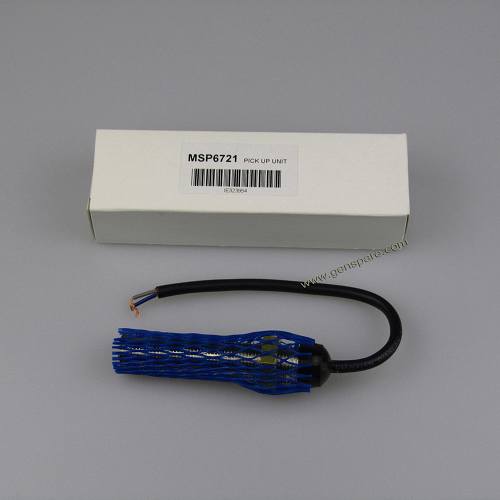

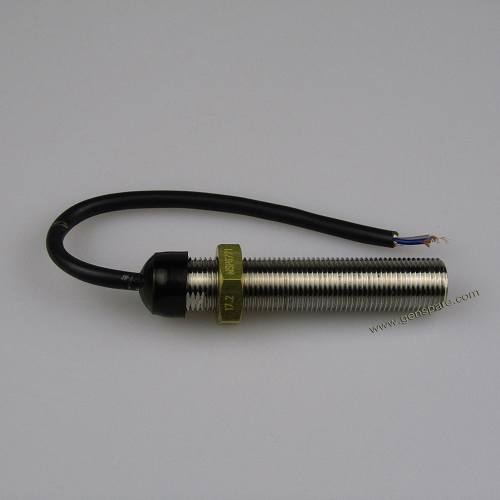

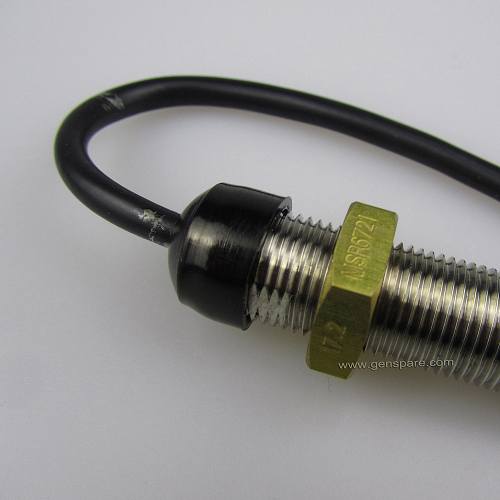

GAC Magnetic Pickup MSP6721
Warranty: 1 Year
Gross Weight: 0.15 kg
Stock Status: In stock
Replaced Brand: GAC
Part No. : MSP6721
Function: GAC MSP6721 Magnetic Speed Sensor
Usage: GAC Speed Sensor MSP6721
Product Name: GAC Magnetic Pickup MSP6721
Compatible with: GAC Speed Pickup MSP6721
GAC Magnetic Speed Pickup Sensor MPU MSP6721
We have GAC MSP6721 Speed Sensor in our regular stock!
The Brands here are for reference purpose only, our parts can exactly replace the original ones.
The Magnetic GAC Speed Sensor MSP6721 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the GAC Magnetic Pickup MSP6721, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available.
5/8-18 UNF Thread Engine Magnetic Speed Pickup Sensor | |||||
Product # | Thread Length | Harness Length | Connector | With Mating Connector | |
MSP674 | 3in [76.2mm] | High Output 913Ω | Military | No | |
MSP675 | 3.19in [81mm] | 7in [178mm] | Flying Leads | No | |
MSP676 | 5in [127mm] | 1ft [0.3m] | Flying Leads | No | |
MSP677 | 3in [76mm] | na | Military | No | |
MSP678 | 4.86in [123.4mm] | na | Military | No | |
MSP679 | 3in [76.2mm] | na | Military | Yes | |
MSP6710 | 4.86in [123.4mm] | na | Military | Yes | |
MSP6719 | 2.37in [60.2mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6720 | 3.86in [98.1mm] | 1ft [0.3m] Harness | Flying Leads | No | |
GAC Speed Pickup MSP6721 | 3.19in [81mm] | 2.75in [70mm] | Automotive | No | |
MSP6721C | 3.19in [81mm] | 2.75in [70mm] | Automotive | Yes | |
MSP6722 | 2.37in [60.2mm] | 6in [152mm] | Push-On Terminals | No | |
MSP6728 | 3.19in [81mm] | 6.25in [159mm] | Packard | No | |
MSP6728C | 3.19in [81mm] | 6.25in [159mm] | Packard | Yes | |
MSP6732 | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | No | |
MSP6732C | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | Yes | |
MSP6743 | 3.5in [89mm] | High Output 1.2kΩ | #8-32NC-2A Threaded Stud Terminals | No |
