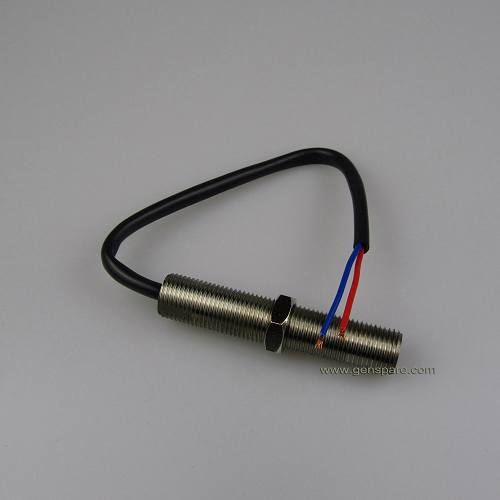

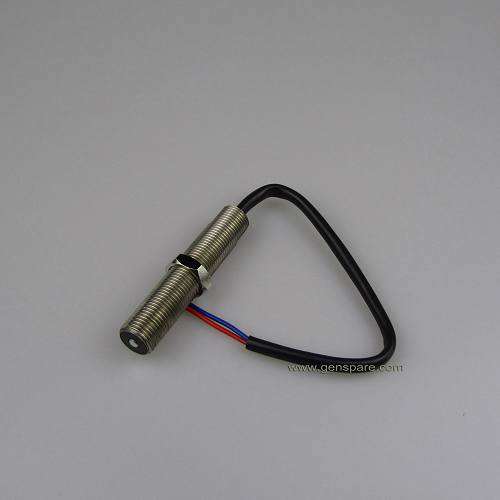

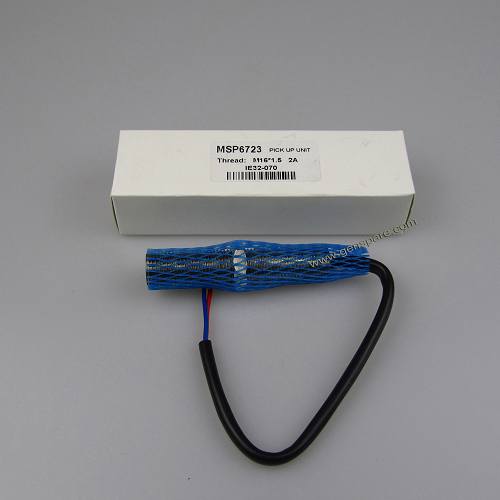

GAC Magnetic Pickup Speed Sensor MSP6723C MSP6723
MSP6723
MSP6723C
introduction
Warranty: 1 Year
Gross Weight: 0.15 kg
Stock Status: In stock
Replaced Brand: GAC
Part No. : MSP6723
Function: GAC MSP6723 Magnetic Speed Sensor
Usage: GAC Speed Sensor MSP6723C
Product Name: GAC Magnetic Pickup MSP6723
Compatible with: GAC Speed Pickup MSP6723C
GAC Magnetic Pickup Speed Sensor MSP6723C MSP6723
We have GAC Speed Sensor MSP6723 in our regular stock!
The Brands here are for reference purpose only, our parts can exactly replace the original ones.
The GAC Magnetic Pickup MSP6723 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the GAC Speed Pickup MSP6723, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available for the Diesel Generator MPU.
M16*1.5 Thread Diesel Generator Speed Sensor | ||||
Product # | Thread Length | Harness Length | Connector | With Mating Connector |
MSP6714 | 3.0in [76.2mm] | na | Military | No |
MSP6715 | 3.0in [76.2mm] | na | Military | Yes |
GAC MSP6723 Speed Sensor | 3.13in [79.4mm] | 3in [76mm] | Automotive | No |
MSP6723C Speed Sensor | 3.13in [79.4mm] | 3in [76mm] | Automotive | Yes |
MSP6739 | 3.13in [79.4mm] | 3in [76mm] | Packard | No |
MSP6745 | 5in [127mm] | na | Military | No |
