GAC Magnetic Speed Pickup Sensor MSP6728 MSP6728C
MSP6728
MSP6728C
introduction
Warranty: 1 Year
Gross Weight: 0.15 kg
Stock Status: In stock
Replaced Brand: GAC
Part No. : MSP6728
Function: GAC MSP6728 Magnetic Speed Sensor
Usage: GAC Speed Sensor MSP6728
Product Name: GAC Magnetic Pickup MSP6728
Compatible with: GAC Speed Pickup MSP6728

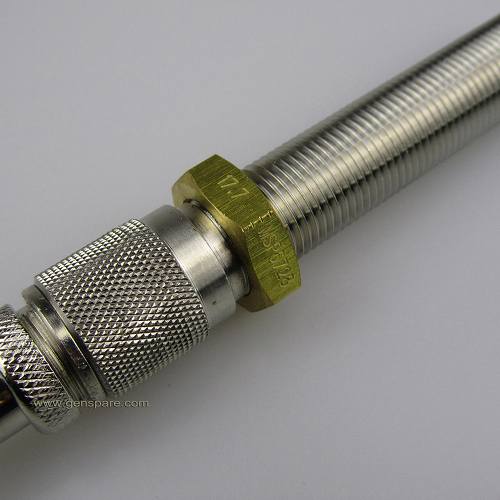

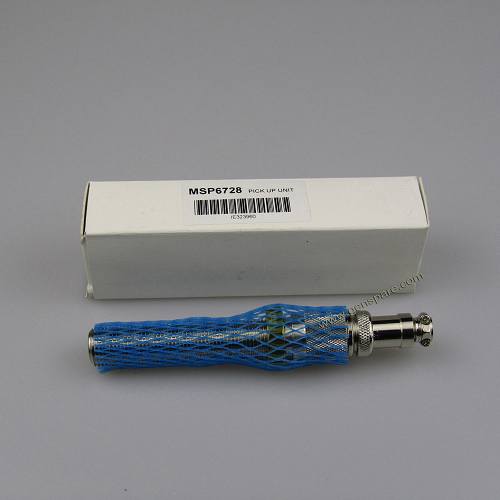

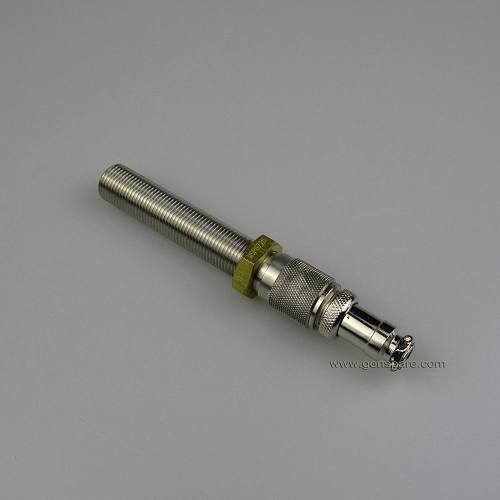

GAC Magnetic Speed Pickup Sensor MSP6728 MSP6728C
We have GAC Speed Sensor MSP6728 in our regular stock!
The Brands here are for reference purpose only, our parts can exactly replace the original ones.
The GAC Speed Pickup MSP6728 detects when ring gear teeth, or other ferrous projections, pass the tip of the sensor. Electrical impulses are produced by the sensor’s internal coil and sent to the speed control unit. The signal from the GAC MSP6728 Magnetic Pickup, teeth per second (Hz.), is directly proportional to engine speed. Speed sensors are available in various lengths in both U.S. and metric threads. Wire leads, military connectors, automotive connectors or stud terminals are also available. Over 30 styles currently available.
5/8-18 UNF Thread Engine Magnetic Speed Sensor | |||||
Product # | Thread Length | Harness Length | Connector | With Mating Connector | |
MSP674 | 3in [76.2mm] | High Output 913Ω | Military | No | |
MSP675 | 3.19in [81mm] | 7in [178mm] | Flying Leads | No | |
MSP676 | 5in [127mm] | 1ft [0.3m] | Flying Leads | No | |
MSP677 | 3in [76mm] | na | Military | No | |
MSP678 | 4.86in [123.4mm] | na | Military | No | |
MSP679 | 3in [76.2mm] | na | Military | Yes | |
MSP6710 | 4.86in [123.4mm] | na | Military | Yes | |
MSP6719 | 2.37in [60.2mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6720 | 3.86in [98.1mm] | 1ft [0.3m] Harness | Flying Leads | No | |
MSP6721 | 3.19in [81mm] | 2.75in [70mm] | Automotive | No | |
MSP6721C | 3.19in [81mm] | 2.75in [70mm] | Automotive | Yes | |
MSP6722 | 2.37in [60.2mm] | 6in [152mm] | Push-On Terminals | No | |
MSP6728 Magnetic Speed Sensor | 3.19in [81mm] | 6.25in [159mm] | Packard | No | |
MSP6728C | 3.19in [81mm] | 6.25in [159mm] | Packard | Yes | |
MSP6732 | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | No | |
MSP6732C | 3.16in [80.3mm] | 3.25in [82.6mm] | Dual Packard | Yes | |
MSP6743 | 3.5in [89mm] | High Output 1.2kΩ | #8-32NC-2A Threaded Stud Terminals | No | |
