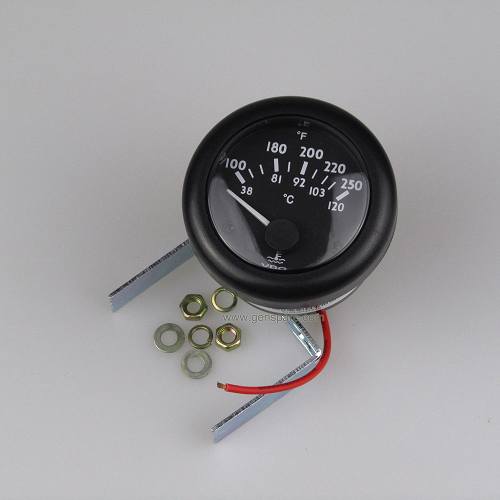

VDO Engine Genset Generator Water Temperature Gauge
Generator Water Temperature Gauge
Engine Water Temperature Gauge
introduction
Warranty: 1 Year
Gross Weight: 0.15 kg
Stock Status: In stock
Replaced Brand: VDO
Function: VDO Temperature Gauge
Usage: VDO Water Temperature Gauge
Compatible with: VDO Engine Water Temperature Gauge
Product Name: VDO Generator Water Temperature Gauge
VDO Engine Genset Generator Water Temperature Gauge
We have VDO Water Temperature Gauge in our regular stock!
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.
Parameters for VDO Generator Water Temperature Gauge:
Working Voltage for VDO Temperature Gauge: 12V or 24V
Range of VDO Genset Water Temperature Gauge: 38-120 ℃
Diameter of VDO Generator Temperature Sensor: 52mm
VDO Gauges :
VDO Oil Pressure Gauge (12V, 24V) : 0-10.3 Bar (0-150 PSI)
VDO Water Temp Gauge (12V, 24V) : 38-120 ℃
VDO Oil Temp Gauge (12V, 24V) : 50-150 ℃
VDO Voltage Gauge (12V, 24V) : 8-16V or 16-32V
VDO Hour Gauge (12V / 24V)
Compatible VDO Generator Water Temperature Sensors :
Part No. | Range (℃) | Alarm Position (℃) | Thread Size |
323-803-001-025D | 120 | 103 ± 3 | 1/2 - 14 NPTF |
325-805-003-003C | 120 | 3/8 - 18 NPTF | |
323-803-001-012D | 120 | 100 ± 3 | 5/8 - 18 NF-3 |
323-801-005-005D | 120 | M10*1.0 | |
323-801-010-003K | 150 | M12*1.5 | |
323-803-001-009D | 120 | 102 ± 3 | M14*1.5 |
323-803-001-007D | 120 | 110 ± 3 | M16*1.5 |
