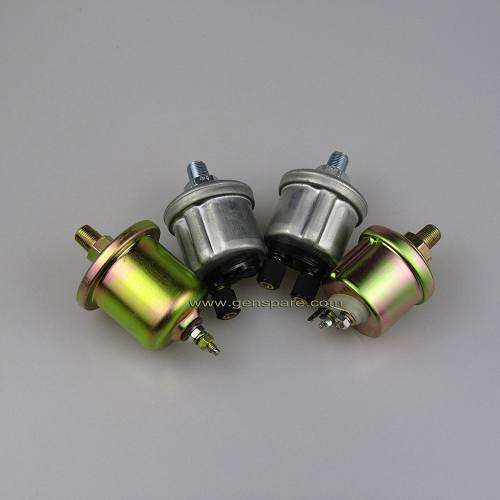

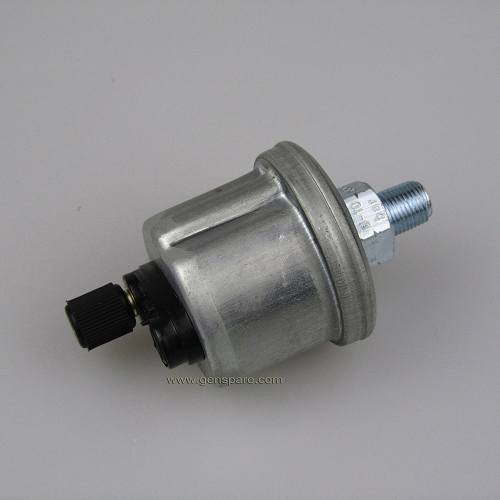

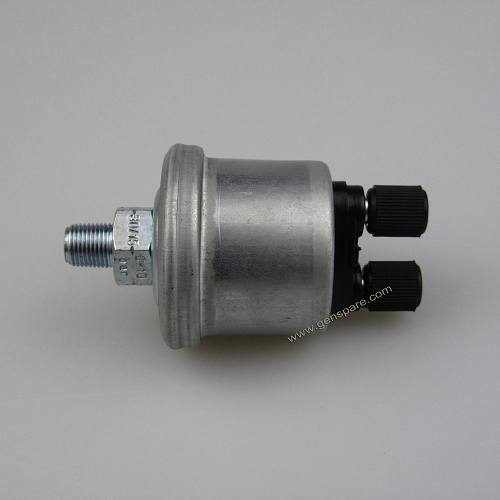

VDO Diesel Gasoline Engine Oil Pressure Sensor
Diesel Engine Oil Pressure Sensor
Gasoline Engine Oil Pressure Sensor
introduction
Warranty: 1 Year
Gross Weight: 0.15 kg
Stock Status: In stock
Replaced Brand: VDO
Function: Diesel Engine Oil Sensor
Usage: Diesel Engine Pressure Sensor
Compatible with: Gasoline Engine Oil Sensor
Product Name: Gasoline Engine Pressure Sensor
VDO Diesel Gasoline Engine Oil Pressure Sensor
We have Diesel Engine Oil Pressure Sensor in our regular stock!
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.
VDO Diesel Engine Pressure Sensor :
Customized Range for VDO Diesel Engine Oil Sensor : 0-5 Bar, 0-10 Bar, 0-16 Bar
Customized Alarm for VDO Gasoline Engine Oil Pressure Sensor: 0.25±0.15 Bar,0.5±0.15 Bar,0.6±0.15 Bar,0.7±0.15 Bar,0.8±0.3 Bar,1±0.15 Bar and etc.
Customized Thread Size for VDO Gasoline Engine Pressure Sensor : M10*1, 1/8''-27, M12*1.5, M14*1.5, M18*1.5, 1/4''-18, 1/8''-27
Examples for Gasoline Engine Oil Sensor :
Part No. | Range (Bar) | Alarm Position (Bar) | Thread Size | Thread Length (mm) |
360-081-030-001C | 5 | 0.25 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-001K | 5 | 0.25 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-002C | 5 | 0.5 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-006C | 5 | 0.6 ± 0.15 | M12 x 1.5 | 20.5 |
360-081-030-008C | 5 | 0.5 ± 0.15 | M12 x 1.5 | 20.5 |
360-081-030-009C | 10 | 0.5 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-009K | 10 | 0.5 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-010C | 5 | 1.4 ± 0.3 | 1/8 – 27 NPTF | 19.5 |
360-081-030-014C | 5 | 0.6 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-015C | 10 | 0.8 ± 0.3 | 1/8 – 27 NPTF | 19.5 |
360-081-030-017C | 10 | 0.9 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-019C | 10 | 1.5 ± 0.15 | M12 x 1.5 | 20.5 |
360-081-030-022C | 10 | 0.5 ± 0.15 | M12 x 1.5 | 20.5 |
360-081-030-028K | 5 | 0.5 ± 0.15 | M14 x 1.5 | 20.5 |
360-081-030-030C | 10 | 0.7 ± 0.15 | M14 x 1.5 | 20.5 |
360-081-030-031C | 10 | 0.5 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-032K | 10 | 0.5 ± 0.15 | M14 x 1.5 | 20.5 |
360-081-030-036C | 5 | 0.5 ± 0.15 | M18 x 1.5 | 20.5 |
360-081-030-037C | 10 | 0.75 ± 0.2 | M18 x 1.5 | 20.5 |
