Oil Pressure Temp Voltage Hour Sensor Gauge VDO

Sensor VDO

Gauge VDO



introduction

Warranty: 1 Year

Gross Weight: 0.15 kg

Stock Status: In stock

Replaced Brand: VDO

Function: Oil Pressure Sensor VDO

Usage: Hour Gauge VDO

Compatible with: Voltage Gauge VDO

Product Name: Oil Pressure Gauge VDO

Oil Pressure Temp Voltage Hour Sensor Gauge VDO



We have VDO Sensor and VDO Gauge in our regular stock!

The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.

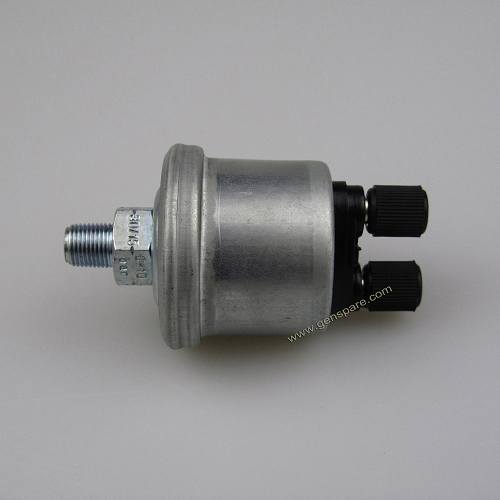

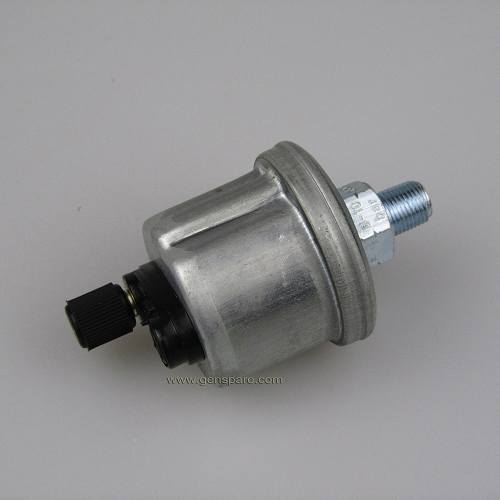

VDO Oil Pressure Sensors :

Customized Range for sensor VDO : 0-5 Bar, 0-10 Bar, 0-16 Bar

Customized Alarm for Oil Pressure Sensor VDO: 0.25±0.15 Bar,0.5±0.15 Bar,0.6±0.15 Bar,0.7±0.15 Bar,0.8±0.3 Bar,1±0.15 Bar and etc.

Customized Thread Size for Pressure Sensor VDO : M10*1, 1/8''-27, M12*1.5, M14*1.5, M18*1.5, 1/4''-18, 1/8''-27

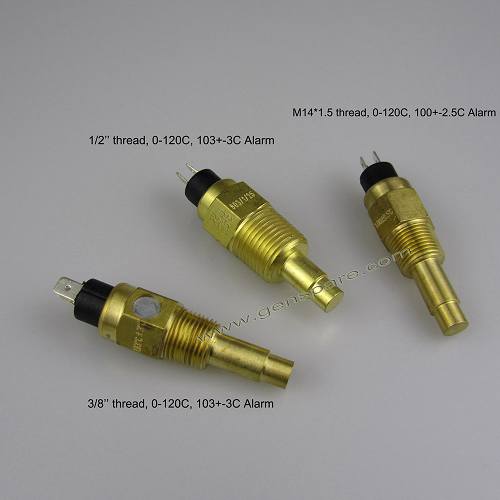

VDO Water Temperature Sensors :

Customized Range for Temp sensor VDO : 0-120C, 0-100C, 0-150

Customized Alarm for Water Temp Sensor VDO: 95 ± 3C, 97 ± 3C, 98 ± 3C, 100 ± 3C, 103 ± 3C, 105 ± 3C and etc..

Customized Thread Size for Temperature Sensor VDO : 3/8''- 18, 1/2''- 14 NPTF, M10*1.5, M12*1.5, M14*1.5, M16*1.5, M18*1.5, 1/8''- 27, 1/4''- 18, 5/8''-18



VDO Gauges:

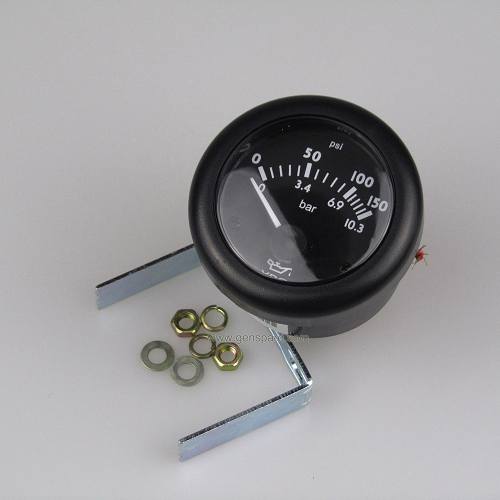

Oil Pressure Gauge VDO (12V, 24V) : 0-10.3 Bar (0-150 PSI)

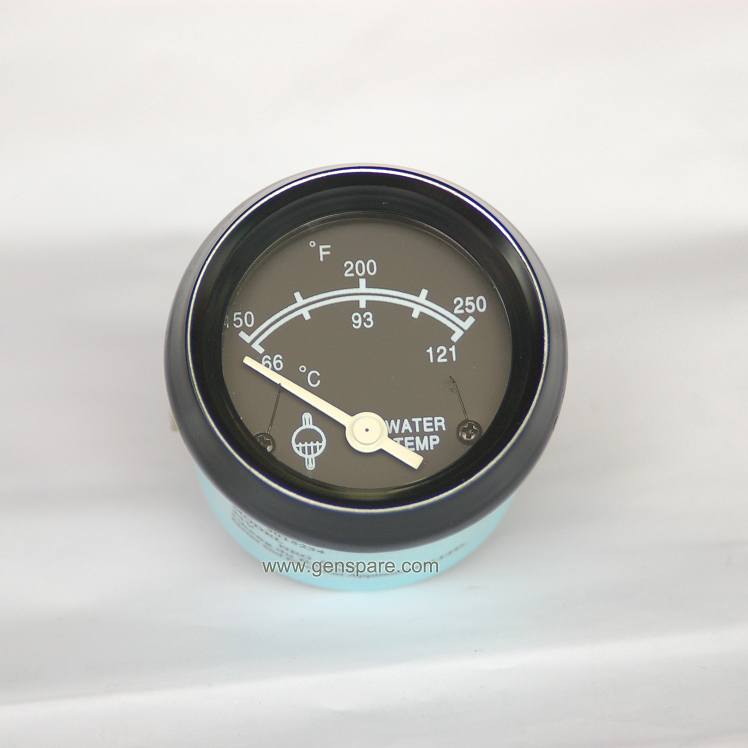

Water Temp Gauge VDO (12V, 24V) : 38-120

Oil Temp Gauge VDO (12V, 24V) : 50-150

Voltage Gauge VDO (12V, 24V) : 8-16V or 16-32V

Hour Gauge VDO (12V / 24V)

Oil Gauge VDO (12V, 24V)

Technical Data:

Rated voltage of Oil Pressure Sensor VDO:

6 V to 24 V

Overpressure safety:

30 bar or 50 bar max. (short periods only for 2 sec)

Warning contact:

Closes as pressure falls

Switching capacity of warning contact:

5 W max. non-inductive

Operating temperature:

-25° C to +100° C (up to +120° C for 1 hour max. at threaded connector)

Resistance range:

10 Ω to 184 Ω



Examples for VDO Generator Pressure Sensors:

Part No.

Range (Bar)

Alarm Position   (Bar)

Thread Size

Thread Length   (mm)

360-081-030-001C

5

0.25 ± 0.15

M10 x 1 con.   short

19.5

360-081-030-001K

5

0.25 ± 0.15

M10 x 1 con. short

19.5

360-081-030-002C

5

0.5 ± 0.15

M10 x 1 con.   short

19.5

360-081-030-006C

5

0.6 ± 0.15

M12 x 1.5

20.5

360-081-030-008C

5

0.5 ± 0.15

M12 x 1.5

20.5

360-081-030-009C

10

0.5 ± 0.15

M10 x 1 con.   short

19.5

360-081-030-009K

10

0.5 ± 0.15

M10 x 1 con.   short

19.5

360-081-030-010C

5

1.4 ± 0.3

1/8 – 27 NPTF

19.5

360-081-030-014C

5

0.6 ± 0.15

M10 x 1 con.   short

19.5

360-081-030-015C

10

0.8 ± 0.3

1/8 – 27 NPTF

19.5

360-081-030-017C

10

0.9 ± 0.15

M10 x 1 con.   short

19.5

360-081-030-019C

10

1.5 ± 0.15

M12 x 1.5

20.5

360-081-030-022C

10

0.5 ± 0.15

M12 x 1.5

20.5

360-081-030-028K

5

0.5 ± 0.15

M14 x 1.5

20.5

360-081-030-030C

10

0.7 ± 0.15

M14 x 1.5

20.5

360-081-030-031C

10

0.5 ± 0.15

M10 x 1 con.   short

19.5

360-081-030-032K

10

0.5 ± 0.15

M14 x 1.5

20.5

360-081-030-036C

5

0.5 ± 0.15

M18 x 1.5

20.5

360-081-030-037C

10

0.75 ± 0.2

M18 x 1.5

20.5



Examples for VDO Generator Water Temperature Sensors :

Part No.

Range ()

Alarm Position ()

Thread Size

323-803-001-025D

120

103 ± 3

1/2 - 14 NPTF

325-805-003-003C

120


3/8 - 18 NPTF

323-803-001-012D

120

100 ± 3

5/8 - 18 NF-3

323-801-005-005D

120


M10*1.0

323-801-010-003K

150


M12*1.5

323-803-001-009D

120

102 ± 3

M14*1.5

323-803-001-007D

120

110 ± 3

M16*1.5
