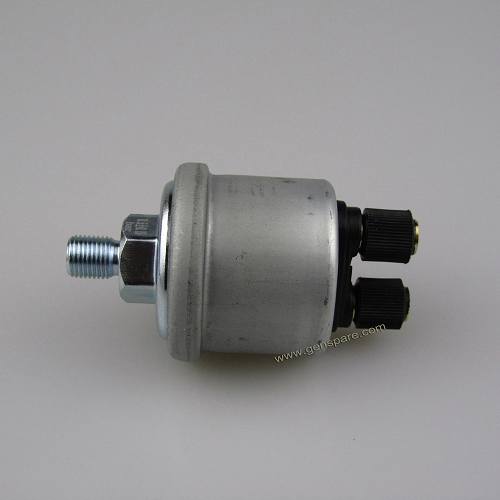

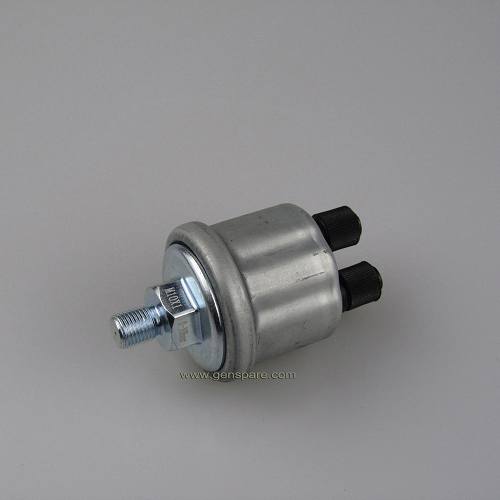

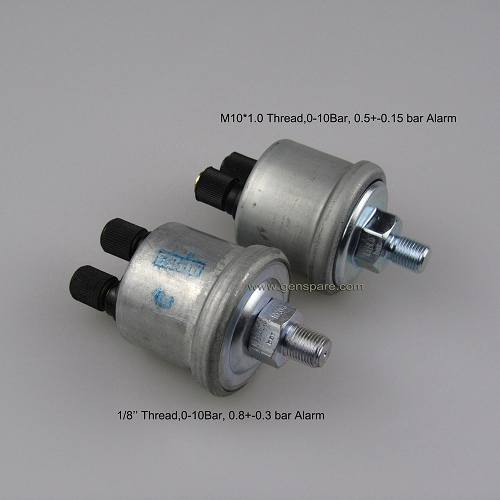

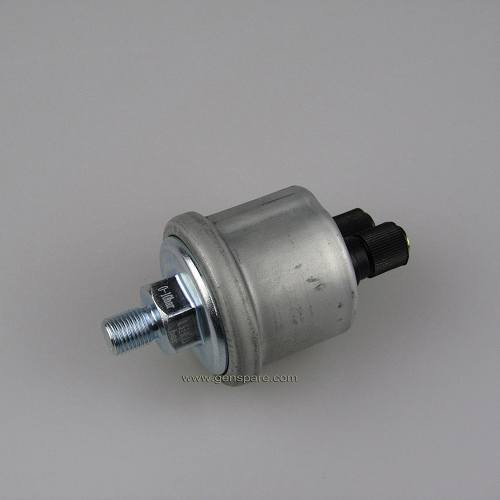

VDO M10*1 0-10 Bar Generator Oil Pressure Sensor
VDO M10*1 Oil Pressure Sensor
M10*1 Oil Pressure Sensor
introduction
Warranty: 1 Year
Gross Weight: 0.15 kg
Stock Status: In stock
Replaced Brand: VDO
Function: VDO Genset Sensor
Usage: Genset Oil Pressure Sensor
Compatible with: Genset Oil Sensor
Product Name: Diesel Genset Oil Pressure Sensor
VDO M10*1 0-10 Bar Generator Oil Pressure Sensor
Whole sale price for VDO M10*1 Generator Oil Pressure Sensor !
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.
VDO M10*1 Oil Pressure Sensor :
Customized Range for Diesel Genset Oil Sensor : 0-5 Bar, 0-10 Bar, 0-16 Bar
Customized Alarm for VDO Genset Oil Sensor : 0.25±0.15 Bar,0.5±0.15 Bar,0.6±0.15 Bar,0.7±0.15 Bar,0.8±0.3 Bar,1±0.15 Bar and etc.
Customized Thread Size for Diesel Genset Oil Pressure Sensor : M10*1, 1/8''-27, M12*1.5, M14*1.5, M18*1.5, 1/4''-18, 1/8''-27
VDO Engine Water Temperature Sensor :
Customized Range for VDO Water Temperature Sensor : 0-120C, 0-100C, 0-150℃
Customized Alarm for VDO Engine Temperature Sensor: 95 ± 3C, 97 ± 3C, 98 ± 3C, 100 ± 3C, 103 ± 3C, 105 ± 3C and etc..
Customized Thread Size for VDO Temperature Sensor : 3/8''- 18, 1/2''- 14 NPTF, M10*1.5, M12*1.5, M14*1.5, M16*1.5, M18*1.5, 1/8''- 27, 1/4''- 18, 5/8''-18
VDO Gauges:
VDO Water Temperature Gauge (12V, 24V) : 38-120 ℃
VDO Oil Pressure Gauge (12V, 24V) : 0-10.3 Bar (0-150 PSI)
VDO Oil Temperature Gauge (12V, 24V) : 50-150 ℃
VDO Volt Gauge (12V, 24V) : 8-16V or 16-32V
VDO Hour Gauge / Hour Meter (12V / 24V)
VDO Fuel Gauge (12V, 24V)
Examples for VDO M10*1 Pressure Sensor :
Part No. | Range (Bar) | Alarm Position (Bar) | Thread Size | Thread Length (mm) |
360-081-030-001C | 5 | 0.25 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-001K | 5 | 0.25 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-002C | 5 | 0.5 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-006C | 5 | 0.6 ± 0.15 | M12 x 1.5 | 20.5 |
360-081-030-008C | 5 | 0.5 ± 0.15 | M12 x 1.5 | 20.5 |
360-081-030-009C | 10 | 0.5 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-009K | 10 | 0.5 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-010C | 5 | 1.4 ± 0.3 | 1/8 – 27 NPTF | 19.5 |
360-081-030-014C | 5 | 0.6 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-015C | 10 | 0.8 ± 0.3 | 1/8 – 27 NPTF | 19.5 |
360-081-030-017C | 10 | 0.9 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-019C | 10 | 1.5 ± 0.15 | M12 x 1.5 | 20.5 |
360-081-030-022C | 10 | 0.5 ± 0.15 | M12 x 1.5 | 20.5 |
360-081-030-028K | 5 | 0.5 ± 0.15 | M14 x 1.5 | 20.5 |
360-081-030-030C | 10 | 0.7 ± 0.15 | M14 x 1.5 | 20.5 |
360-081-030-031C | 10 | 0.5 ± 0.15 | M10 x 1 con. short | 19.5 |
360-081-030-032K | 10 | 0.5 ± 0.15 | M14 x 1.5 | 20.5 |
360-081-030-036C | 5 | 0.5 ± 0.15 | M18 x 1.5 | 20.5 |
360-081-030-037C | 10 | 0.75 ± 0.2 | M18 x 1.5 | 20.5 |
