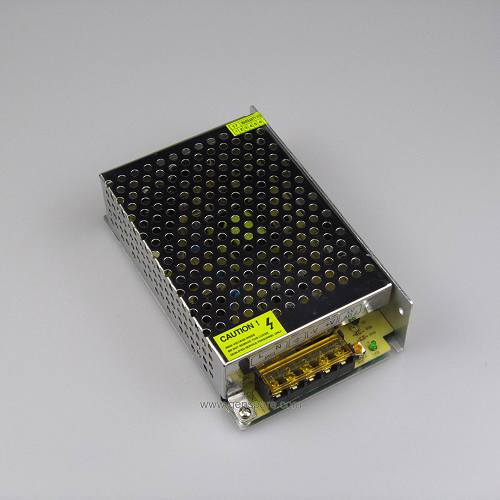

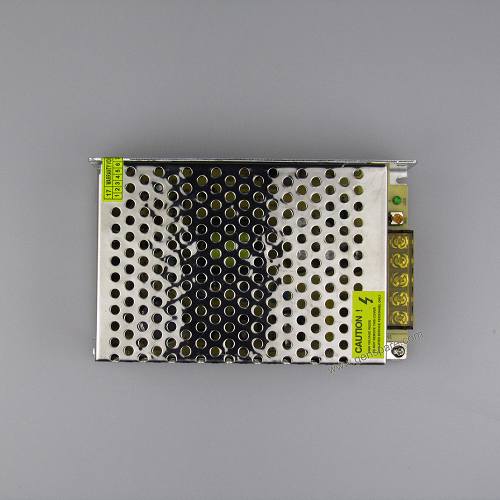

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

100% full load burn-in test

Fixed switching frequency at 77KHz

RATED CURRENT

5A

CURRENT RANGE

0 ~ 5A

RATED POWER

60W

RIPPLE & NOISE (max.) Note.2

120mVp-p

VOLTAGE ADJ. RANGE

10.8 ~ 13.2V

VOLTAGE TOLERANCE Note.3

±1%

LINE REGULATION

±0.5%

LOAD REGULATION

±0.5%

SETUP, RISE TIME

300ms, 50ms/230VAC 800ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

80ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE

85 ~   264VAC         120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY(Typ.)

76%

AC CURRENT (Typ.)

2A/115VAC           1A/230VAC

INRUSH CURRENT (Typ.)

COLD START   20A/115VAC         40A/230VAC

LEAKAGE CURRENT

<3.5mA / 240VAC

PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically   after fault condition is removed.

OVER VOLTAGE

13.8 ~ 16.2V

ENVIRONMENT

WORKING TEMP.

-10 ~ +60 ℃ (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85 ℃ , 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50 ℃ )

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each   along X, Y, Z axes

SAFETY &
  EMC
  (Note 4)

SAFETY STANDARDS

Design refer to UL1012

WITHSTAND VOLTAGE

I/P-O/P:3KVAC       I/P-FG:1.5KVAC     O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204,   EN55024, light industry level, criteria A

OTHERS

MTBF

316.2K hrs min.     MIL-HDBK-217F   (25 )

DIMENSION

159*97*38mm (L*W*H)

PACKING

0.51Kg; 24pcs/13.1Kg/0.7CUFT

NOTE

1. All parameters NOT specially mentioned are measured   at 230VAC input, rated load and 25 of ambient temperature.
  2. Ripple & noise are measured at 20MHz of bandwidth by using a 12"   twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. Tolerance : includes set up tolerance, line regulation and load   regulation.
  4. The power supply is considered a component which will be installed into a   final equipment. The final equipment must be re-confirmed that it still meets
  EMC directives.
