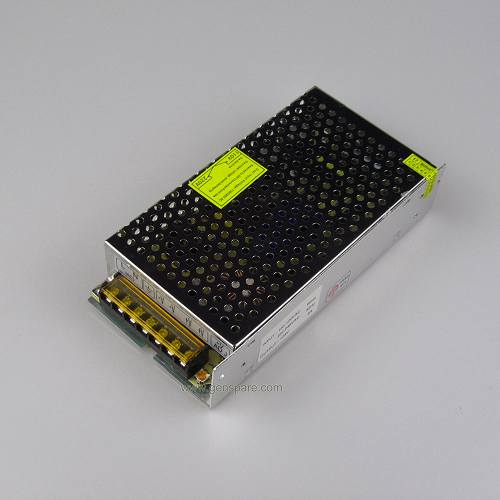

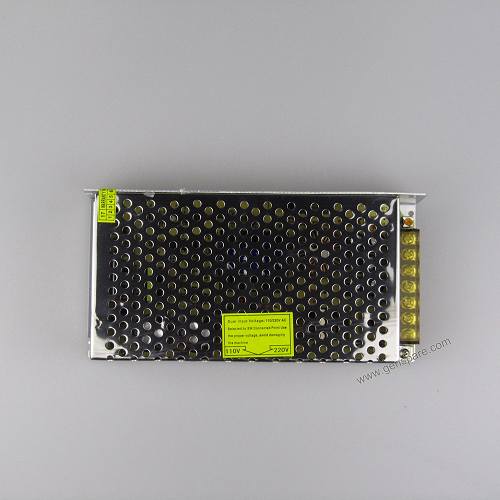

Protections: Short circuit / Overload / Over voltage

Cooling by free air convection

100% full load burn-in test

Fixed switching frequency at 77KHz

OUTPUT

DC VOLTAGE

24V

RATED CURRENT

5A

CURRENT RANGE

0 ~5A

RATED POWER

108W

RIPPLE & NOISE (max.) Note.2

100mVp-p

VOLTAGE ADJ. RANGE

21.6 ~ 26.4V

VOLTAGE TOLERANCE Note.3

±1%

LINE REGULATION

±0.2%

LOAD REGULATION

±0.2%

SETUP, RISE TIME

200ms, 80ms, 20ms at full load

INPUT

VOLTAGE RANGE

85 ~ 132VAC/180 ~ 264VAC selected by   switch         255 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY(Typ.)

84%

AC CURRENT (Typ.)

2.4A/115VAC             1.2A/230VAC

INRUSH CURRENT (max.)

COLD START   30A/115VAC         60A/230VAC

LEAKAGE CURRENT

<1mA / 240VAC

PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type : Shut down o/p voltage, re-power on to   recover

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85 ℃ , 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50 ℃ )

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each   along X, Y, Z axes

SAFETY &

EMC

(Note 4)

SAFETY STANDARDS

Design refer to UL1012

WITHSTAND VOLTAGE

I/P-O/P:1.5KVAC         I/P-FG:1.5KVAC       O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Design refer to FCC Part15 J Conduction Class B

DIMENSION

199*98*38mm (L*W*H)

PACKING

0.62Kg; 20pcs/13.6Kg/0.72CUFT
