Deep Sea DSE Waterproof Module 402 DSE402 MKII

DSE402 Product Specification Download.pdf

DSE402 MKII Product Specification Download.pdf

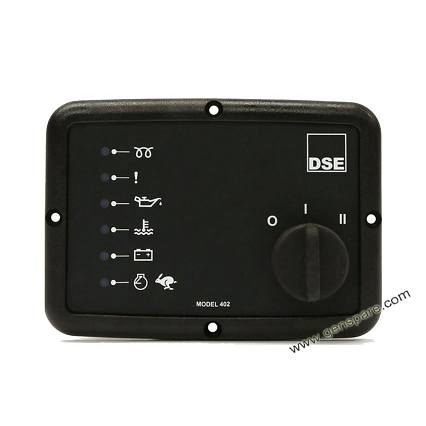

The Deep Sea DSE402 MKII is a waterproof Auto/Manual Start Control Module designed for generator and engine only applications. The intelligent design combines smart features with a waterproof key switch and enclosure to provide an excellent control option for wet/humid environments.

OVERALL SIZE
157 mm x 111 mm x 60 mm (6.2” x 4.4” x 2.4”)
Excludes Key Switch

PANEL CUTOUT SIZE
132 mm x 84 mm (5.2 " x 3.4")

MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)

WEIGHT
0.45kg

PRODUCT VARIANTS
0402-03 - 402 MKII Waterproof Engine Control Module (Mpu)
0402-04 - 402 MKII Waterproof Engine Control Module (Hz)
0402-05 - 402 MKII Waterproof Engine Control Module with ETS (Mpu)
0402-06 - 402 MKII Waterproof Engine Control Module with ETS (Hz)
