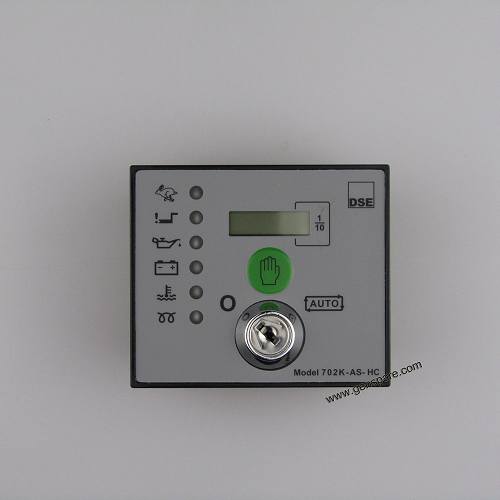

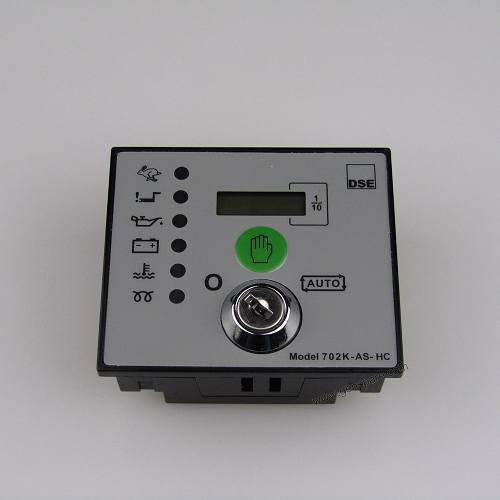

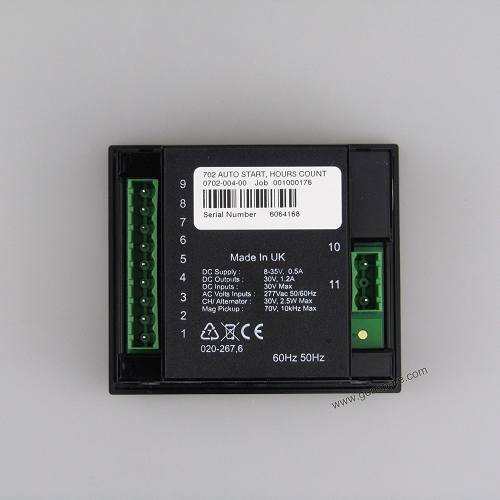

Deep Sea DSE Controller 702K-AS-HC 702K-MS-HC

MANUAL & AUTO START CONTROL MODULES

Manual Start Module: 702K-MS-HC

Auto Start Module: 702K-AS-HC

The Brands here are for reference purpose only, our parts can exactly replace the original ones.

The DSE702 Generator Controller offers an excellent range of engine monitoring and protection features. The Generator Manual Start Control offers inputs to monitor low oil pressure, high engine temperature and overspeed and the manual start version also has a user-defined auxiliary input. Auto Start versions also include an input option for a start signal from a remote location.

When the Generator Manual Control detects any of the above faults it will light the warning LED on the front panel.

KEY FEATURES of Generator Controller Deep Sea DSE702

• Manual start and remote start versions

• Remote start input (auto start version only)

• Auxiliary shutdown input (Manual start version only)

• Engine monitoring and protection

• LED indication

• Engine pre-heat

• Front panel mounting

KEY BENEFITS of DSE Controller DSE 702K-MS-HC and 702K-MS-HC

• Multiple engine parameters are monitored simultaneously

DC PROVIDE

CONTINUOUS VOLTAGE RATING

8 V to 35 V continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing provide was at least 10 V before dropout and provide recovers to 5 V. This is achieved without the need for internal batteries.

OUTPUTS of DSE702

START

Solid state 1.2 A negative grounding terminal

RUN

Solid state 1.2 A negative grounding terminal

PRE-HEAT

Solid state 1.2 A negative grounding terminal

GENERATOR

VOLTAGE RANGE

15 V - 333 V AC (L-N)

FREQUENCY RANGE

3.5 Hz to 75 Hz

DIMENSIONS

OVERALL

72 mm x 72 mm x 38 mm

2.8” x 2.8” x 1.5”

Excludes key switch

PANEL CUT-OUT

68 mm x 68 mm

2.7” x 2.7”

MAXIMUM PANEL THICKNESS

8 mm
