Deep Sea DSE 3110 Generator Controller DSE3110

DSE3110 Product Specification Download.pdf

DSE3110

MANUAL & AUTO START CONTROL MODULE

2 Versions are available: MPU type and ECU Type. Please declare the communication type when place order.

The DSE 3110 Generator Controller can be utilised as a Manual or Auto Start Module for single gen-set applications or engine only applications. The module has been designed to work with electronic and non-electronic engines, providing advanced engine monitoring and protection features.

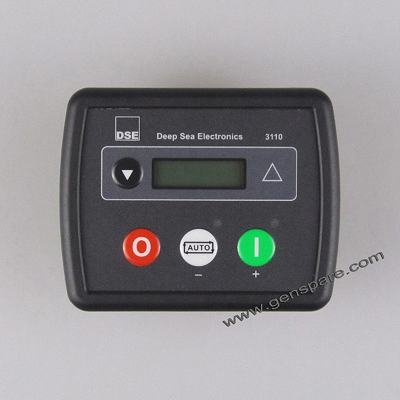

The DSE Generator Controller DSE3110 includes a back-lit icon LCD display which clearly shows the status of the engine at all times.

The Deep Sea 3110 Generator Controller monitors engine speed, frequency, voltage and engine run hours and also displays the warning and shutdown status.

The module includes fixed and flexible outputs as well as configurable inputs making this product ideal for a wide variety of applications. The module can either be programmed using the front panel or by using the DSE Configuration Suite PC software.

The Deep Sea 3110 Controller is available in two variants:

·         CAN– For use with electronic engines only.

·         Optional frequency (Hz) sensing from main AC alternator for genset applications. MPU/ALT.– For use with non-electronic engines only (magnetic pick-up/alternator sensing).

·         Optional frequency (Hz) sensing from main AC alternator for genset applications.

Optional Magnetic Pickup speed sensing.
