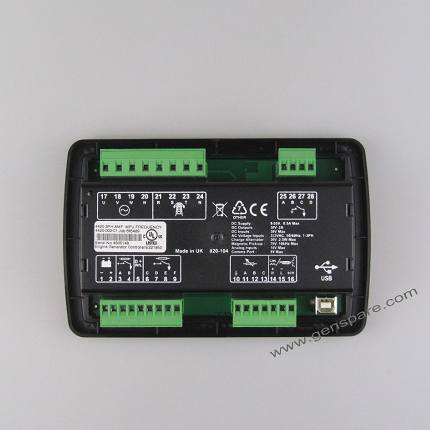

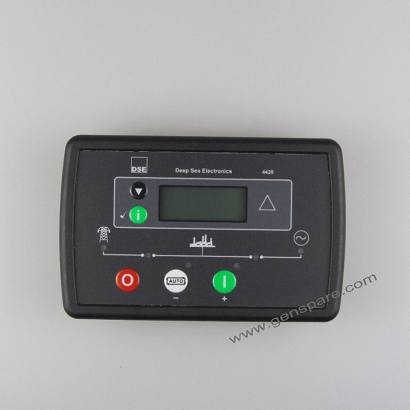

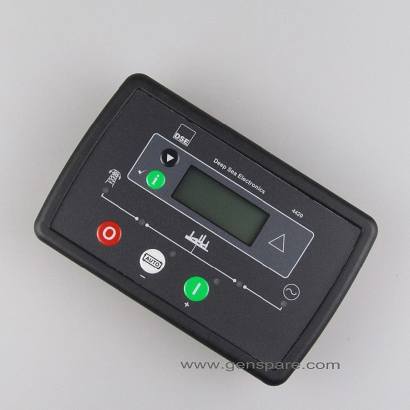

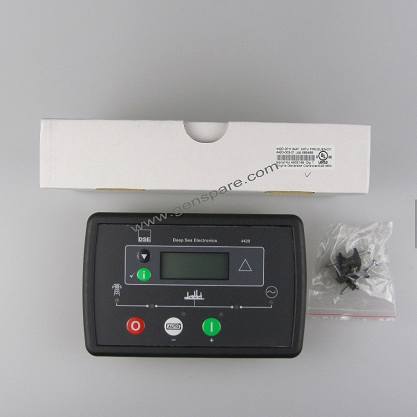

Deep Sea DSE 4420 Generator Controller DSE4420

DSE4410, DSE4420 Product Specification Download.pdf

DSE4420

AUTO MAINS FAILURE CONTROL MODULES

The Deep Sea DSE4410 Generator Controller is an Auto Start Control Module and the DSE 4420 Generator Controller is an Auto Mains (Utility) Failure Control Module with 3 phase sensing, suitable for a wide variety of single, diesel or gas, gen-set applications. Monitoring, speed, frequency, voltage, oil pressure, coolant temperature and fuel level, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LED.

DSE Generator Controller DSE4420 offer electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engine versions and offer a number of flexible inputs, outputs and engine protections so the system can be easily adapted to suit a wide range of application demands.

Deep Sea 4420 Generator Controller can be easily configured using the DSE Configuration Suite PC software.

Selected front panel editing is also available.

KEY FEATURES

• CAN and magnetic pick-up/Alt. sensing versions (specify on ordering)

• 3 phase generator monitoring

• Four digital inputs/three analogue inputs

• Six outputs (all six configurable on CANbus version, four configurable on magnetic pick up version)

• Three phase sensing

• Event log (5)

• 50/60 Hz calibration setting

• Configurable timers

• Automatic shutdown or warning when fault conditions are detected

• Overspeed protection

• Manual and remote start

• Engine pre-heat

• Protected Solid State Outputs (PSS)

• Advanced metering capability

• Front panel/PC programming

• Hours counter

• LED indicators

• Back-lit character icon LCD display

KEY BENEFITS

• Automatically transfers between mains (utility) and generator power (DSE4420 only)

• Hours counter provides accurate information for monitoring and maintenance periods

• User-friendly set-up and button layout

• Multiple engine parameters are monitored simultaneously

• Module can be configured to suit individual applications

• Compatible with a wide range of CAN engines

• IP65 rating offers advanced resistance to water ingress when the gasket is fitted

• License-free PC software.
