Deep Sea Controller DSE 6110 DSE6110 MKII MK2

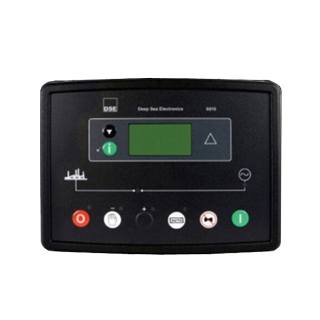

DSE6110 MKII

Auto Start Control Module

DSE6110MKII is compatible with both MPU and ECU Communicated Generators, while DSE6110 can only be used to Generators with MPU communications.

The DSE 6110 MKII is an Auto Start Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets.

PANEL CUTOUT SIZE
184 mm x 137 mm (7.2” x 5.3”)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
OVERALL SIZE
216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)

The Deep Sea DSE6110 MKII Auto Start Control Module and the Deep Sea DSE6120 MKII Auto Mains (Utility) Failure Control Module are suitable for a wide variety of single gen-set applications.
Monitoring engine speed, oil pressure, coolant temperature, frequency, voltage, current, power and fuel level, the modules give comprehensive engine and alternator protection. This is indicated on a large back-lit LCD text display via an array of warning, electrical trip and shutdown alarms in multiple languages.

Electronic J1939 (CAN) and nonelectronic MPU and alternator sensing engine support for diesel, gas and petrol engines all in one variant. With a number of flxible inputs, outputs and protections, the modules can be easily adapted to suit a wide range of applications.
Through USB Communication both modules can be confiured using the DSE Confiuration Suite PC Software
or through the module’s front panel editor.
