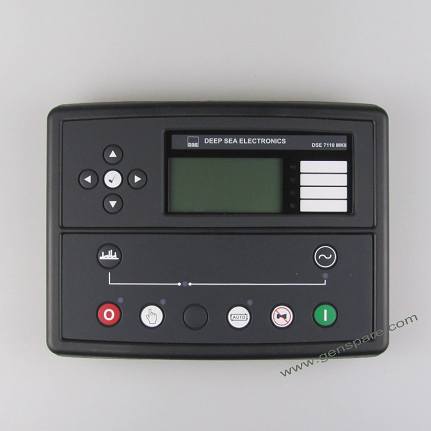

Deep Sea DSE 7110 Generator Controller DSE7110

DSE7110

AUTO START CONTROL MODULES

The DSE7110 is an Auto Start Control Module and the DSE7120 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, genset applications. Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen and illuminated LEDs.

Both modules offer electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engine versions and offer an extensive number of flexible inputs, outputs and advanced engine protections so the system can be easily adapted to suit a wide range of application demands.

Enhanced features include a real time clock for improved event monitoring and a 4-line icon display.

The modules can be easily configured using the DSE Configuration Suite PC software.

Front panel editing is also available.

KEY FEATURES

• Back-lit icon LCD display

• Five key menu navigation

• Front panel editing

• LED and LCD alarm indication

• Power Save mode

• 4 Digital inputs

• 3 Analogue inputs (2 fixed, 1 flexible)

• 6 configurable outputs

• Configurable timers and alarms

• Alternative configuration

• Event Log (5)

• CAN and Magnetic Pick up / Alt. sensing

• 3 Phase generator monitoring

• Current monitoring and protection

• 3 Phase Mains (Utility) monitoring (DSE7120 only)

• Test button (DSE7120 only)

• Automatic load transfer (DSE7120 only)

• Battery voltage monitoring

• Engine pre-heat

• Hours counter

• Comprehensive shutdown or warning on fault condition

• Backed-up real-time clock

• Fully configurable via DSE Configuration Suite PC software

• USB connectivity

• Remote SCADA monitoring via DSE Configuration Suite PC software

KEY BENEFITS

• Automatically transfers between mains (utility) and generator power (DSE7120 only)

• Real-time clock provides accurate event logging

• Hours counter provides accurate information for monitoring and maintenance periods

• User-friendly set-up and button layout

• Multiple engine parameters are monitored simultaneously

• Module can be configured to suit individual applications

• Compatible with a wide range of CAN engines

• Uses DSE Configuration Suite PC software for simplified configuration

• IP65 rating (with supplied gasket) offers increased resistance to water ingress

• Licence-free software
