Deep Sea Controller DSE 7320 DSE7320 MKII MK2 DSE7320MKII

DSE7320MKII

DSE7320MK2



introduction

Part No. : DSE7320MKII

Origin: Made in UK

Brand: DSE / DEEP SAE

Warranty: 1 Year

Gross Weight: 1 kg

Usage: Deep Sea Controller DSE7320 MKII

Function: DSE7320 MKII Generator Controller

Product Name: Deep Sea 7320MKII Generator Controller

Original Deep Sea Controller DSE 7320 DSE7320 MKII MK2 DSE7320MKII

DSE7320MKII CONTROLLERS IN STOCK NOW



DSE7310 MKII  DSE7320 MKII - Operators Manual Download.pdf

DSE7320 VS DSE7320MKII Function Comparation.pdf

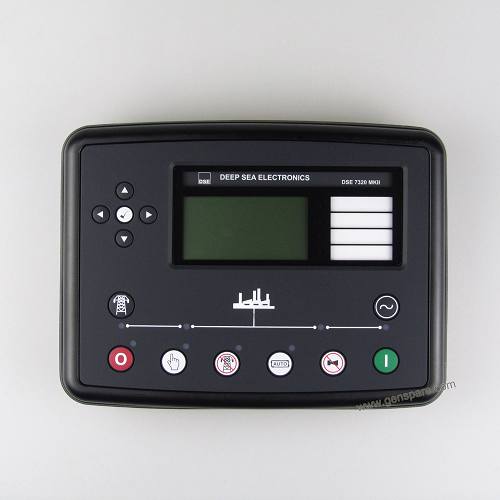

The Deep Sea DSE7310 MKII is an Auto Start Control Module and the DSE7320 MKII DSE7320MKII is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single, diesel or gas, gen-set applications.

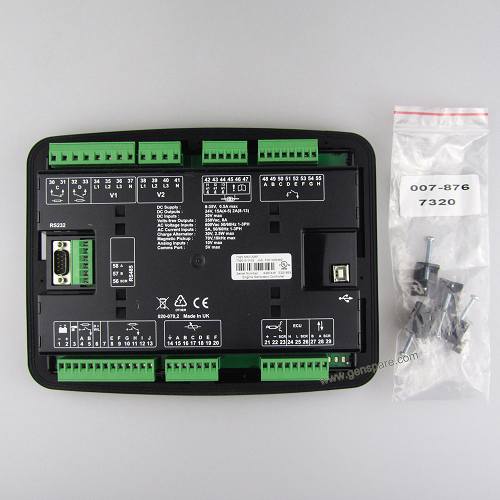

Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC and via SMS text alerts (with external modem). The Deep Sea DSE7320MKII Generator Controller will also monitor the mains (utility) supply. The modules include USB, RS232 and RS485 ports as well as dedicated DSENet® terminals for system expansion.



Both modules are compatible with electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offer an extensive number of flexible inputs, outputs and extensive engine protections so the system can be easily adapted to meet the most demanding industry requirements.



The Deep Sea DSE7320 MKII DSE7320MKII Genset Controller is a powerful, new generation Auto Mains Failure genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications.



Featuring a new Dual Core main processor and extended memory, the module provides faster and more powerful processing power, returning faster operational responses on intensive applications and increased functionality, with data logging facility.  Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LED's, remote PC's and via SMS text alerts (with external communication device).





The extensive list of features includes enhanced event and performance monitoring, remote communications & PLC functionality. Dual mutual standby is now available on both the DSE731 MKII & DSE7320MKII using RS232 or RS485 communications. This provides for a simpler and more convenient installation with more advanced features such as true engine hours balancing.



The modules can be easily configured using the DSE Configuration Suite PC software. Selected front panel editing is also available.



OVERALL SIZE 245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")



PANEL CUTOUT SIZE 220 mm x 160 mm (8.7" x 6.3")



MAXIMUM PANEL THICKNESS 8.0 mm (0.3")



PRODUCT VARIANTS 7320-03 - 7320 MKII Auto Mains Failure Control Module
