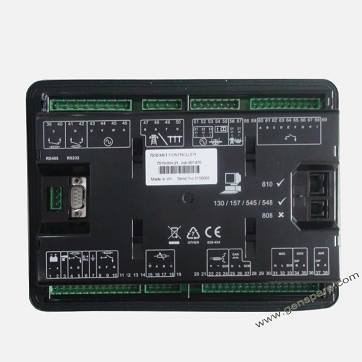

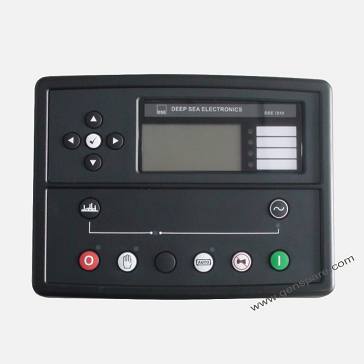

Deep Sea Genset Controller DSE7510 Generator Controller

DSE7510 Product Specification Download.pdf

DSE7510

AUTO START & LOAD SHARE CONTROL MODULE

DSE7510 was discontinued and replaced by DSE8610MKII now.

FEATURES

The DSE 7510 Generator Controller is an Automatic Engine Control Module, designed to provide advanced load share functionality for diesel and gas generating sets that include electronic and non-electronic engines.

The module’s load share functions include automatic synchronising with built-in synchroscope and closing onto dead bus. Direct and flexible outputs from the module are provided to allow connection to the most commonly used speed governors and automatic voltage regulators (AVRs).

A sophisticated module monitoring an extensive number of engine parameters, the DSE Generator Controller DSE7510 will annunciate engine shutdowns, warnings, and engine status information on the back-lit LCD screen, by illuminated LED, on a remote PC, by audible alarm and via SMS text alerts (GSM modem required). The Deep Sea 7510 Generator Controller includes RS232 and RS485 ports as well as dedicated terminals for system expansion.

MODULE CAPABILITIES

• Fixed export with mains (utility) supply

• Synchronising up to 16 gen-sets The Deep Sea 7510 Controller has sophisticated engine and power monitoring, high level instrumentation and flexible timers and alarms, making the system suitable for a wide range of synchronising applications.

DSE7560 is required to synchronise with the mains (utility).

KEY FEATURES

• Configurable inputs (11)

• Configurable outputs (8)

• Voltage measurement

• Mains (utility) failure detection

• Dedicated load test button

• kW overload alarms

• Comprehensive electrical protection

• RS232, RS485 & Ethernet remote communications

• Modbus RTU/TCP

• PLC functionality

• Multi event exercise timer

• Back-lit LCD 4-line text display

• Multiple display languages

• Automatic start/Manual start

• Audible alarm

• Fixed and flexible LED indicators

• Event log (250)

• Engine protection

• Fault condition notification to a designated PC

• Front panel mounting

• Protected front panel programming

• Configurable alarms and timers

• Configurable start and stop timers

• Five key menu navigation

• Front panel editing with PIN protection

• 3 configurable maintenance alarms

• CAN and magnetic pick-up/Alt. sensing

• Fuel usage monitor and low fuel alarms

• Charge alternator failure alarm

• Manual speed control (on compatible CAN engines)

• Manual fuel pump control

• “Protections disabled” feature

• Reverse power protection

• Power monitoring (kW h, kV Ar, kV A h, kV Ar h)

• Load switching (load shedding and dummy load outputs)

• Automatic load transfer (DSE7420)

• Unbalanced load protection

• Independent earth fault trip

• Fully configurable via DSE Configuration Suite PC software

• Configurable display languages

• Remote SCADA monitoring via DSE Configuration Suite PC software

• AdvancedSMS messaging (additional external modem required)

• Start & stop capability via SMS messaging

• Additional display screens to help with modem diagnostics

• DSENet® expansion

• Integral PLC editor

KEY BENEFITS of Deep Sea DSE7510 Generator Controller

• RS232, RS485 & Ethernet can be used at the same time

• DSENet® connection for system expansion

• PLC functionality

• Five step dummy load support

• Five step load shedding support

• High number of inputs and outputs

• Worldwide language support

• Direct USB connection to PC

• Ethernet monitoring

• USB host

• Data logging & trending
