Deep Sea DSE 8660 Generator Controller DSE8660 MKII DSE8660MKII

DSE8660 Product Specification Download.pdf

DSE8620 MKII DSE8620MKII Operation Manual.pdf

DSE8660 DSE8660MKII

AUTO TRANSFER SWITCH & MAINS CONTROL MODULE

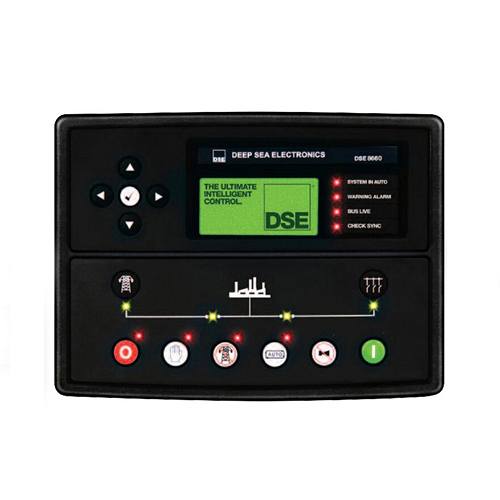

The Deep Sea DSE 8660 DSE8660MKII DSE8660 MKII Generator Controller is an easy-to-use single or multi-mains controller with automatic transfer switch capability.

Designed to synchronisesingle or multiple DSE8610s with single or multiple mains (utility) supplies, the Deep Sea 8660 DSE8660MKII Generator Controller will automatically control the change over from mains (utility) to generator supply or run generators in synchronisation with the mains (utility) to provide no-break, peak lopping and peak shaving power solutions.

The module can indicate operational status and fault conditions on the LCD screen (multiple languages available), by illuminated LED, audible sounder and SMS messaging.

Comprehensive communications are also available via RS485 and RS232 for remote PC control and monitoring, and integration into building management systems.

The comprehensive event log will record up to 250 events to facilitate maintenance.

An extensive number of fixed and flexible monitoring and protection features are included. Easy alteration of the sequences, timers and alarms can be made using the DSE PC Configuration Suite Software. Selected configuration is also available via the module’s front panel.

With all communication ports capable of being active at the same time, the Deep Sea DSE8660 Generator Controller is ideal for a wide variety of demanding load share applications.

KEY LOAD SHARE FEATURES of Deep Sea DSE8660 mkii DSE8660MKII Controller:

• Peak lopping

• Sequential set start

• Manual voltage/frequency adjustment

• R.O.C.O.F. and vector shift

• Generator load demand

• Automatic hours run balancing

• Mains (Utility) de-coupling

• Mains (Utility) de-coupling test mode

• Bus failure detection

• Volts and frequency matching.
