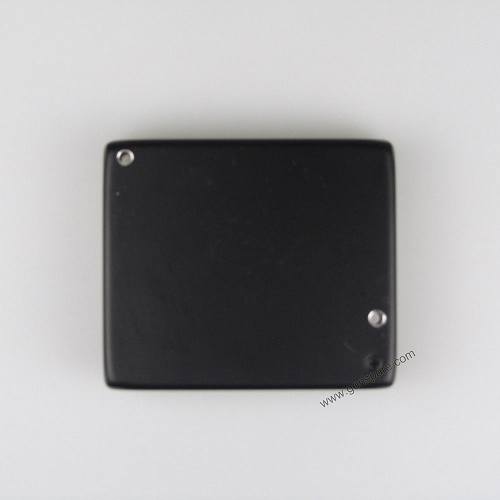

GAC Engine Speed Governor Control Unit ESD2210 ESD2210-12

We have GAC Engine Control Unit ESD2210-12 in our Regular Stock!

The Brands mentioned here are for reference only, our parts can exactly replace the original ones.

ESD2200 Series Speed Control Units

ESD2210-12.....................................................Standard unit, 12V

ESD2210-24.....................................................Standard unit, 24V

The GAC ESD2200-12 speed control unit is an all-electronic device designed to control engine speed with fast and precise response to transient load changes.

This closed loop control, when connected to a proportional electric actuator and sup­plied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode.

It is designed for high reliability and it’s hard potted to withstand the engine environ­ment.

Simplicity of installation and adjustment was foremost in the design.

Non-interacting performance controls allow near optimum response to be easily ob­tained.

Other features of GAC Engine Speed Control Unit ESD2210 include protection against reverse battery voltage, transient voltages, accidental short circuit of the actuator, and fail safe design in the event of loss of speed sensor signal or battery supply.

ESD-2200 Series Speed Control Units

ESD-2210-12.....................................................Standard unit, 12V

ESD-2210-24.....................................................Standard unit, 24V

Specifications of GAC ESD2210 Speed Governor

Performance

Isochronous Operation/Steady State Stability ............................................................................±0.25% or better

Speed Range/Governor..............................1K-7.5K Hz continuous

Speed Drift with Temperature................................±1% Maximum

Speed Trim Range .................................................± 250 Hz. Typical

Terminal A Sensitivity .....................................................................130 Hz., ± 15 Hz / Volt @ 5.1K Impedance

Environmental of GAC ESD2210-12 Engine Speed Control Unit

Ambient Operating Temperature Range...............................................................-40 to +180°F (-40° to +85°C)

Relative .Humidity.............................................................up to 100%

All Surface Finishes ......Fungus Proof and Corrosion Resistant

Input Power of ESD2210-12 GAC Speed Governor

Supply................................................-12; 8-20VDC, -24; 16-32VDC (Transient and Reverse Voltage Protected)*

Polarity........................................Negative Ground (Case Isolated)

Power Consumption............................... .........................................60 mA continuous plus actuator current

Actuator Current Range @ 77°F (25°C)........10Amps continuous

Speed Senior Signal.............................................0.5-50 Volts RMS

Reliability

Vibration.....................................................................5G @ 20-500 Hz

Testing......................................................100% Functionally Tested

Physical

Dimensions............................................ See Outline (DIAGRAM 1)

Weight....................................................................12 oz. (347 grams)

Mounting......................................Any Position, Vertical Preferred
