HT INDUSTRIAL AUTOMATION LIMITED

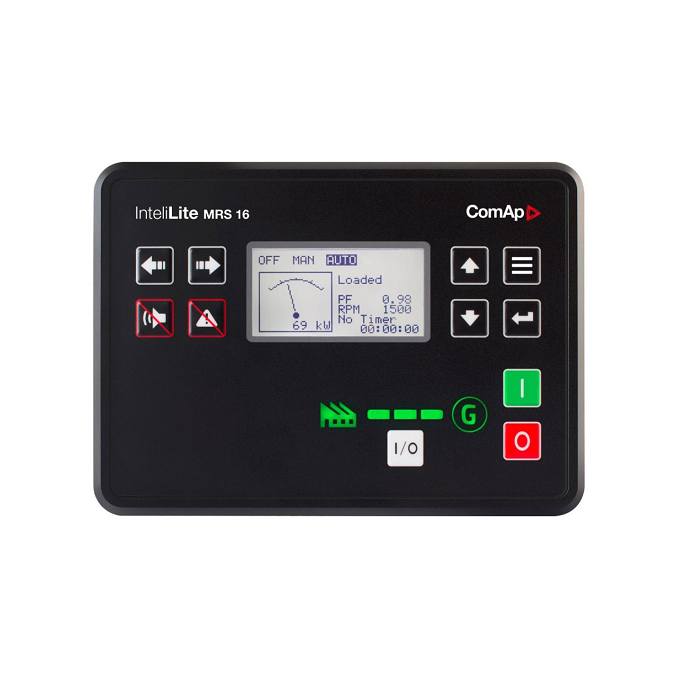

ComAp InteliLite MRS16 Genset Generator Controller

Advanced Manual & Remote Start (MRS) gen-set controller

Order Code: IL3MRS16BAA, IL3MRS16BLA

ComAp InteliLite MRS16 Datasheet.pdf

Genuine ComAp InteliLite MRS16 Controller with wholesale price.

Features for ComAp InteliLite MRS16 Genset Controller

New generation of one of the world's most successful controllers in its class.

Advanced single gen-set controller for Prime-power applications.

• Single gen-set controller for prime      power applications

• Easy to install, configure and use

• 5 languages in the controller

• 3 level of password

• 3 sets of alternative configuration

• Direct communication with EFI engines

• Tier 4 final ready for ComAp MRS16 Genset Controller

• Total remote monitoring and control

• Cloud-based monitoring and control      via WebSupervisor

• Wide range of communication      capabilities including:

• connection via RS232, RS485, CAN and       on board USB

• internet access using Ethernet, GPRS,       3G or 4G

• support for Modbus (TCP/RTU) and SNMP       (v1/v2c – including traps)

• Active SMS and emails in different      languages

• Geofencing and tracking via      WebSupervisor

• In-built PLC, complemented with a PLC      monitoring tool in InteliConfig

• 11 inputs and 7 outputs on-board

• 2x 10 A binary outputs for cranking      and fuel solenoid

• More I/Os available over plug-in or      CAN modules (EM-BIO8-EFCP, Inteli AIN8, Inteli AIN8TC, Inteli      AIO9/1, Inteli IO8/8, IGS-PTM)

• Remote Annunciator over CAN

• Activation of outputs based on inputs supported for ComAp InteliLite MRS16 Generator Controller

• Load shedding, dummy load capability

• Real time clock (with battery)

• Multipurpose flexible timers

• Flexible event based history with up      to 350 events

• True RMS measurement

• Comprehensive protections available in ComAp IL3 MRS16 Controller

• Possibility to disable protections

• Available also in low temperature      version (Order code: IL3MRS16BLA)

• UL Listed
