HT INDUSTRIAL AUTOMATION LIMITED

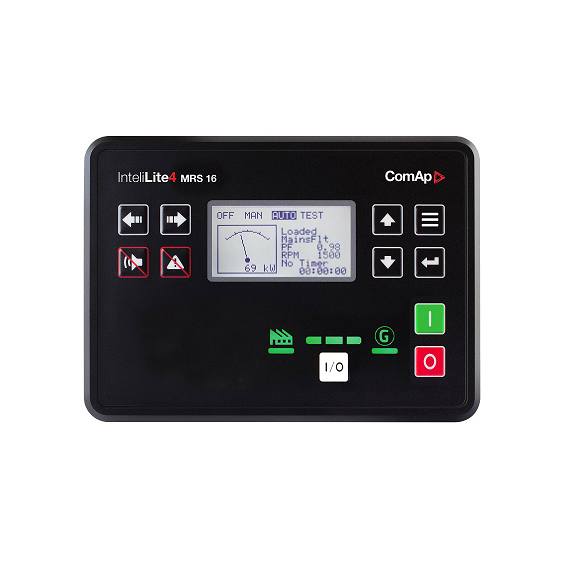

ComAp InteliLite 4 MRS16 Genset Generator Controller

Advanced single gen-set controller for prime-power applications

Order Code: IL4MRS16BAA, IL4MRS16BLA

ComAp InteliLite 4 MRS16 Datasheet.pdf

Genuine ComAp InteliLite 4 MRS16 Controller with wholesale price.

Features for ComAp InteliLite 4 MRS16 Genset Controller

New generation of one of the world's most successful controllers in its class.

Advanced single gen-set controller for Prime-power applications.

• Backlit symbols

•  8 binary outputs, 8 + 1 binary inputs, 4 analogue inputs      (U/I/R)

• +5V output reference for analogue inputs

• 2 high-current binary outputs

• USB Host

• Inbuilt RS485 supported for ComAp InteliLite 4 MRS16 Genset Controller

• 2 slots for extension plug-in modules (Modbus, Internet, SMS,      inputs/outputs)

• Extension CAN modules supported for ComAp InteliLite 4 MRS16 Generator Controller

• ECU support (Tier 4 Final, Stage V)

• RTC with battery back-up (full calendar)

• Power over USB for controller configuration

• ‘Zero’ power mode

• True RMS measurement available in ComAp IL4 MRS16 Controller

• In-built PLC, complemented with a PLC monitoring tool - InteliConfig

• Full remote communications support (AirGate 2.0, WebSupervisor)

• Internet access using Ethernet/4G, Modbus TCP/RTU, SNMP v1/v2c

• Active SMS and emails

• Detailed history log with up to 350 records

• Dual Mutual Standby application support

• Compatible with remote display

• User setpoints and protections

• 5 languages in the controller and Translator functionality

• User Access Management

• Cyber security improvement

• Alternative configurations

• Multi-purpose schedulers

• Modbus register mapping

• Load shedding, dummy load management

• Optional Geofencing based on GPS position

• Cut-out: 187 mm × 132 mm

• Available also in low temperature version (Order code: IL4MRS16BLA)
