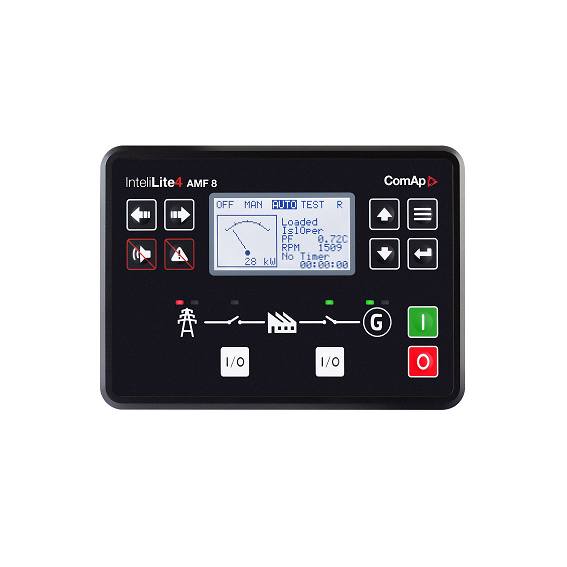

ComAp InteliLite 4 AMF8 Genset Generator Controller

Single gen-set controller for standby and prime-power applications

Order code: IL4AMF8XBAA

ComAp InteliLite 4 AMF8 Datasheet.pdf

Genuine ComAp InteliLite 4 AMF8 Controller with wholesale price.

Features for ComAp InteliLite 4 AMF8 Genset Controller

• Standby and prime-power application in one unit

• 6 binary outputs, 6 + 1 binary inputs, 3 analogue      inputs (U/I/R)

• +5V output reference for analogue inputs

• 2 high-current binary outputs

• 1 slot for extension plug-in modules (Modbus,      Internet, SMS, inputs/outputs)

• Extension CAN modules

• ECU support (Tier 4 Final, Stage V)

• RTC with battery back-up (full calendar)

• Power over USB for controller configuration

• ‘Zero’ power mode

• True RMS measurement

• In-built PLC, complemented with a PLC monitoring      tool - InteliConfig

• Full remote communications support (AirGate 2.0,      WebSupervisor)

• Internet access using Ethernet/4G, Modbus TCP/RTU,      SNMP v1/v2c

• Active SMS and emails

• Detailed history log with up to 150 records

• Compatible with remote display

• User setpoints and protections

• 5 languages in the controller and Translator      functionality

• User Access Management

• Cyber security improvement

• Alternative configuration

• Multi-purpose schedulers

• 3 maintenance timers

• Modbus register mapping

• Fuel pump management

• Run Hours source selector

• Cut-out: 172 mm × 112 mm
