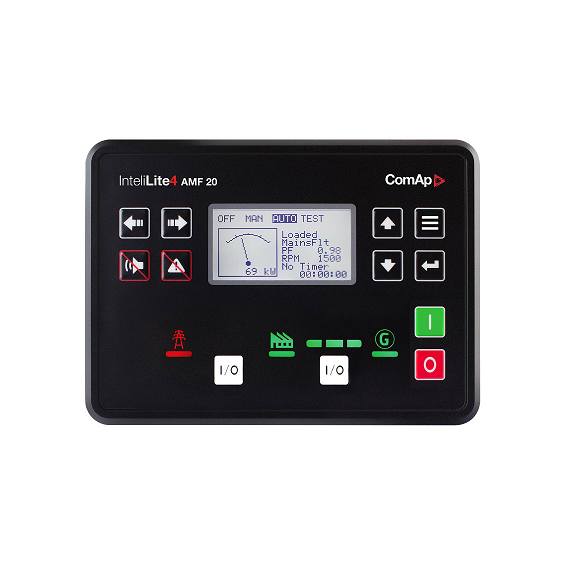

ComAp InteliLite 4 AMF20 Genset Generator Controller

InteliLite 4 AMF20 Controller

ComAp InteliLite 4 AMF20 Controller



introduction

Advanced single gen-set controller for standby and prime-power applications

Order Code: IL4AMF20BAA



Genuine ComAp InteliLite 4 AMF20 Controller with wholesale price.

ComAp InteliLite 4 AMF20 Genset Generator Controller



Advanced single gen-set controller for standby and prime-power applications

Order Code: IL4AMF20BAA

ComAp InteliLite 4 AMF20 Datasheet.pdf



Genuine ComAp InteliLite 4 AMF20 Controller with wholesale price.



Features for ComAp InteliLite 4 AMF20 Genset Controller



New generation of one of the world's most successful controllers in its class. Advanced single gen-set controller for stand-by and prime power applications.

Easy to install, configure and use.

  • Standby and prime-power application in one unit

  • Backlit symbols available in ComAp IL4 AMF20 Controller

  • 6 binary outputs, 6 + 1 binary inputs, 3 analogue inputs (U/I/R)

  • +5V output reference for analogue inputs

  • 2 high-current binary outputs supported for ComAp InteliLite 4 AMF20 Generator Controller

  • USB Host

  • 2 slots for extension plug-in modules (Modbus, Internet, SMS,      inputs/outputs)

  • Extension CAN modules supported for ComAp InteliLite 4 AMF20 Genset Controller

  • ECU support (Tier 4 Final, Stage V)

  • RTC with battery back-up (full calendar)

  • Power over USB for controller configuration

  • ‘Zero’ power mode

  • True RMS measurement

  • In-built PLC, complemented with a PLC monitoring tool - InteliConfig

  • Full remote communications support (AirGate 2.0, WebSupervisor)

  • Internet access using Ethernet/4G, Modbus TCP/RTU, SNMP v1/v2c

  • Active SMS and emails

  • Detailed history log with up to 350 records

  • Compatible with remote display

  • User setpoints and protections

  • 5 languages in the controller and Translator functionality

  • User Access Management

  • Cyber security improvements

  • Alternative configurations

  • Multi-purpose schedulers

  • Modbus register mapping

  • Load shedding, dummy load management

  • Optional geofencing based on GPS position

  • Cut-out: 187 mm × 132 mm
