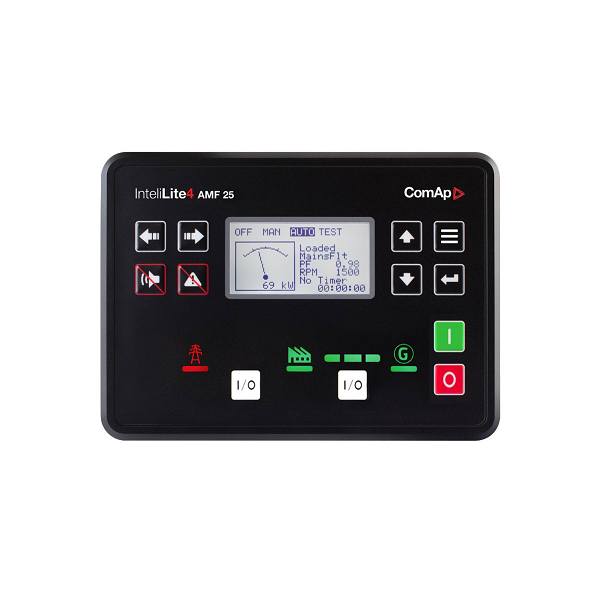

ComAp InteliLite 4 AMF25 Genset Generator Controller

Advanced single gen-set controller for standby and prime-power applications

Order code: IL4AMF25BAA, IL4AMF25BLA

ComAp InteliLite 4 AMF25 Datasheet.pdf

Genuine ComAp InteliLite 4 AMF25 Controller with wholesale price.

Features for ComAp InteliLite 4 AMF25 Genset Controller

New generation of one of the world's most successful controllers in its class. Advanced single gen-set controller for stand-by and prime power applications.

Easy to install, configure and use.

• Standby and prime-power application in one unit

• Backlit symbols

• 8 binary outputs, 8 + 1 binary inputs, 4 analogue inputs (U/I/R)

• +5V output reference for analogue inputs

• 2 high-current binary outputs available in ComAp IL4 AMF25 Controller

• USB Host

• Inbuilt RS485 supported for ComAp InteliLite 4 AMF25      Generator Controller

• 2 slots for extension plug-in modules (Modbus, Internet, SMS,      inputs/outputs)

• Extension CAN modules

• ECU support (Tier 4 Final, Stage V)

• RTC with battery back-up (full calendar)

• Power over USB for controller configuration

• ‘Zero’ power mode

• True RMS measurement supported for ComAp InteliLite 4 AMF25 Genset Controller

• In-built PLC, complemented with a PLC monitoring tool - InteliConfig

• Full remote communications support (AirGate 2.0, WebSupervisor)

• Internet access using Ethernet/4G, Modbus TCP/RTU, SNMP v1/v2c

• Active SMS and emails

• Detailed history log with up to 350 records

• Dual mutual standby application support

• Compatible with remote display

• User setpoints and protections

• 5 languages in the controller and Translator functionality

• User Access Management

• Cyber security improvements

• Alternative configurations

• Multi-purpose schedulers

• Modbus register mapping

• Load shedding, dummy load management

• Optional geofencing based on GPS position

• Cut-out: 187 mm × 132 mm

• Also available in low temperature version (Order      code: IL4AMF25BLA)
