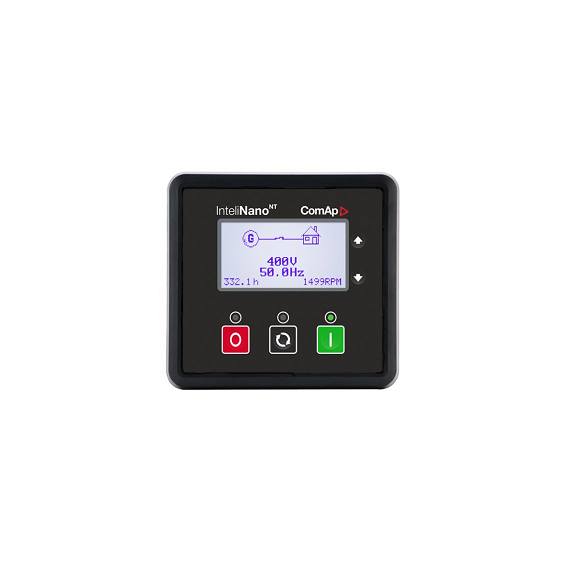

ComAp InteliNano MRS3 Genset Generator Controller

Gen-set controller for prime power applications with 3 phase voltage and current measurement

Order Code: IN-NT MRS 3

ComAp InteliNano MRS 3 Datasheet.pdf

Genuine ComAp InteliNano MRS3 Controller with wholesale price.

Features for ComAp InteliNano MRS3 Controller:

• Controller for single gen-set operating in prime power
       applications

• 3 Phase generator voltage and current measurement

• Power measurement and energy counters for ComAp InteliNano MRS3 Genset Controller

•  Connection type and voltage auto detect

•  Generator and engine protections

•  Icon based interface

• Automatic or manual GCB control

• ‘Zero’ power consumption mode supported for ComAp InteliNano MRS3 Generator Controller

• Battery voltage, service time and running hours
       indication

• Automatic recharge of batteries supported for InteliNano MRS3 ComAp Genset Controller

• Configurable via front panel

• Light Tower mode supported

• Event log (15 events)

• Up to 6 inputs/Up to 6 outputs

• 2 high current outputs, for Starter and Fuel Solenoid,
       internally connected to the Emergency Stop input

• D+ pre-excitation terminal

• Magnetic pickup

• ECU support (CAN J1939)

• USB one-cord power supply and programming

• License free PC configuration software (NanoEdit)

• Standard cut-out dimension 96 × 96 mm

• Outside dimension 110 × 100 mm

• IP65 rated (if optional gasket is used)
