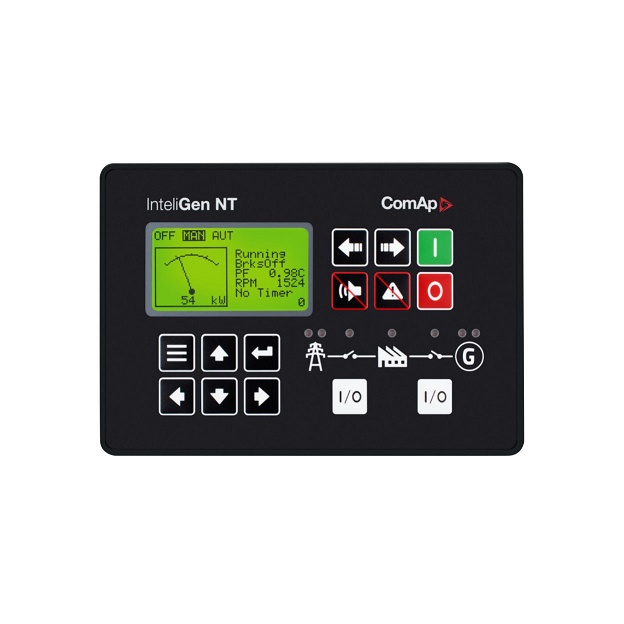

ComAp InteliGen NT IG-NT GC Parallel Generator Genset Controller

Complex Marine Parallel Gen-Set Controller

Order code: IG-NT GC

ComAp InteliGen NT IG-NT GC Controller Datasheet.pdf

Genuine ComAp InteliGen NT IG-NT GC Controller with wholesale price.

Features for ComAp IG-NT GC InteliGen NT Parallel Genset Controller:

Marine certified controller.

• Gen-set controller for single or      multiple generating sets operating in standby or parallel modes

• Support of engines with ECU      (Electronic Control Unit) supported by ComAp IteliGen NT      Controller

• Many communication options – easy      remote supervising and servicing

• To be used      indenpendently or in conjunction with detachable / external colour      displays InteliVision 5, InteliVision      8,  InteliVision 12Touch, or InteliVision 18Touch

• Gen-set performance log for easy      problem tracing

• Automatic synchronizing and power      control (via speed governor or ECU)

• AMF function, Baseload, Import /      Export, Peak shaving, Voltage and PF control (AVR)

• Generator measurement, Mains      measurement

• Inputs and outputs configurable for      various customer needs

• Controller redundancy supported       by ComAp IG-NT GC Generator Controller

• Event-based history (up to 500      records) with customer-selectable list of stored values; RTC; statistic      values

• Integrated PLC programmable functions       supported by ComAp IteliGen NT IG-NT GC Controller

• Integrated fixed and configurable      protection

• With Solution of Application support -      manage up to 992 Gen-sets in Extended Multiple Gen-set      Application (Bank Controller)

GeCon functionality is included in IGS NT Standard Firmware version 3.9 and newer!


Order instruction: To run the GeCon software you need to order InteliGen NT, and then install the correct GeCon software:

• GeCon      LandBased (included in standard firmware)

• GeCon      Marine (special dedicated firmware)

IGS-NT-LSM+PMS dongle is required for Loadsharing and PowerManagement.
