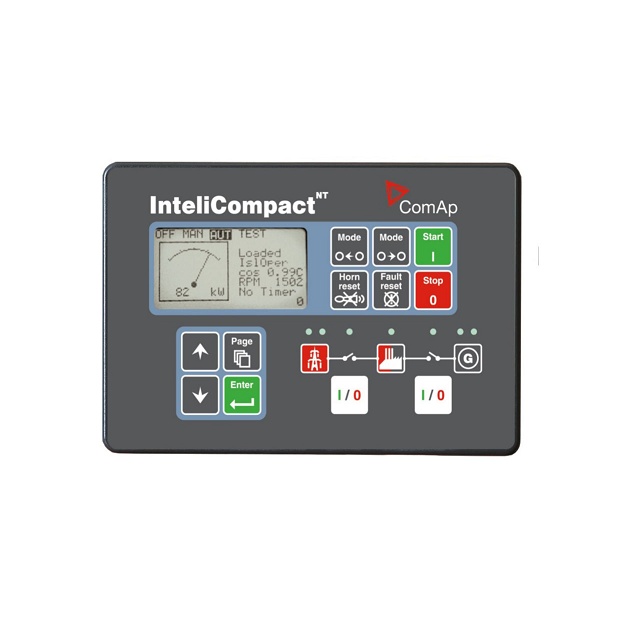

ComAp InteliCompact NT SPtM IC-NT SPTM Parallel Generator Genset Controller

Generator Controller for Gensets in Multiple Parallel Applications

ComAp Order Code: IC-NT SPTM

ComAp InteliCompact NT SPtM IC-NT SPTM Controller Datasheet.pdf

Genuine ComAp InteliCompact NT SPtM IC-NT SPTM Generator Controller is Refer for availability since January 1st 2021. Regular production of this product is terminated and availability not guaranteed. Please contact us for more information.

Features for ComAp InteliCompact NT SPtM IC-NT SPTM Parallel Genset Controller:

• Compact genset controller for single genset operating      in Parallel to Mains mode or Auto Mains Failure (AMF) mode      with no-break transfers

• Meets all requirements for AMF applications

• Forward and reverse synchronizing

• Peak shaving, Peak lopping

• Load, speed, voltage and power factor control

• High tariff avoidance

• Mains import/export

• Full gen-set monitoring and protection

• Possibility to connect up to 8 gauges to display engine values

• True voltage and current RMS measurement

• Outstanding EFI engine support (CAN/J1939, RS232/Modbus) with      diagnostic messages in plain text

• 3 phase generator voltage and current measurement

• 3 phase mains voltage measurement

• 3 phase power measurement

• 1 phase mains current measurement

• Additional 7 binary inputs/outputs via IC-NT CT-BIO7 (in total up to      16 inputs/15 outputs)

• 3 analog inputs

• RS232, RS485, USB, Modbus, GSM/Analog Modem, Internet communication*

• GPRS communication and IC-NT RD (remote display) software

• AirGate and WebSupervisor support

• Support of active SMS Events or Commands

• Event and performance log

• 2 languages (user changeable)

• IC-NT CT-BIO7 extension plug-in module included

* relevant plug-in module is required
