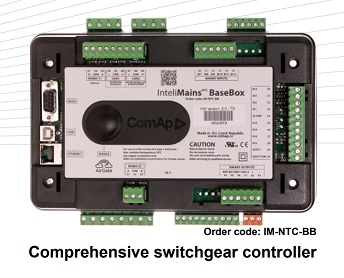

ComAp InteliMains NT BaseBox IM-NT-BB Mains Supervision Generator Genset Controller

Mains Supervision Controller Base Unit

Order code: IM-NT-BB

ComAp InteliMains NT BaseBox IM-NT-BB Datasheet.pdf

Genuine ComAp InteliMains NT BaseBox Mains Generator Controller with wholesale price.

Features for ComAp InteliMains NT BaseBox IM-NT-BB Genset Controller:

• For      multiple up to 31 gen-sets operating in parallel to mains (or isolated      parallel)

• Import/export      power control of the gen-set group; many different power control modes      available

• Reverse      synchronization of the loaded gen-set group to mains

• Coupling      of several synchronized mains to a common bus

• Allows      to build complex applications with more mains incomers, bus-tie breakers      etc.

• AMF      function, Baseload, Import / Export, Peak shaving

• Mains      measurement: U, I, Hz, kW, kVAr, kVA, PF, kWh, kVAhr

• Bus      measurement: U, I, Hz, kW, kVAr, PF

• Selectable      measurement ranges for AC voltages and currents – 120 / 277 V, 0–1 / 0–5 A

• True      RMS (TRMS) is used with Voltage, Current and Power measurement

• Inputs      and outputs configurable for various customer needs

• Bipolar      binary outputs - possibility to use BO as High or Low side switch

• Event-based      history (up to 1000 records) with customer-selectable list of stored      values

• Integrated      PLC programmable functions

• Integrated      fixed and configurable protections

• DIN-Rail      mount of the controller

• Customized      firmware solution

Possible firmware applications:

• MCB      application (controller is controlling Mains Circuit Breaker and provides      import/export to Mains functions and other related features)

• MGCB      application (controller is controlling Mains Circuit Breaker and Master      Gen-set Circuit Breaker and provides import/export to Mains functions and      other related features)

• BTB      application (controller is controlling Bus Tie Breaker and provides      enhanced options for breaker control dependent on various user settings      and left and right bus parameters, full support of control groups is included)

• FDR      application (contoller is controlling Load Circuit Breaker and provides      wide variety of function related to load management)

       NOTE: For Grid Codes compliance please use InteliMains GSC.
